HDS PRO 16 Fish Finders
HDS PRO 16 Fish Finders

HDS PRO 16 Fish Finders

Regular price $6,193.05 CAD
Sale price $6,193.05 CAD Regular price $6,519.00 CAD
Unit price
  • SKU:
    000-16005-001
In Stock
26 people are viewing this right now
Ask a question

Ask a Question

* Required fields

 Size guide Share

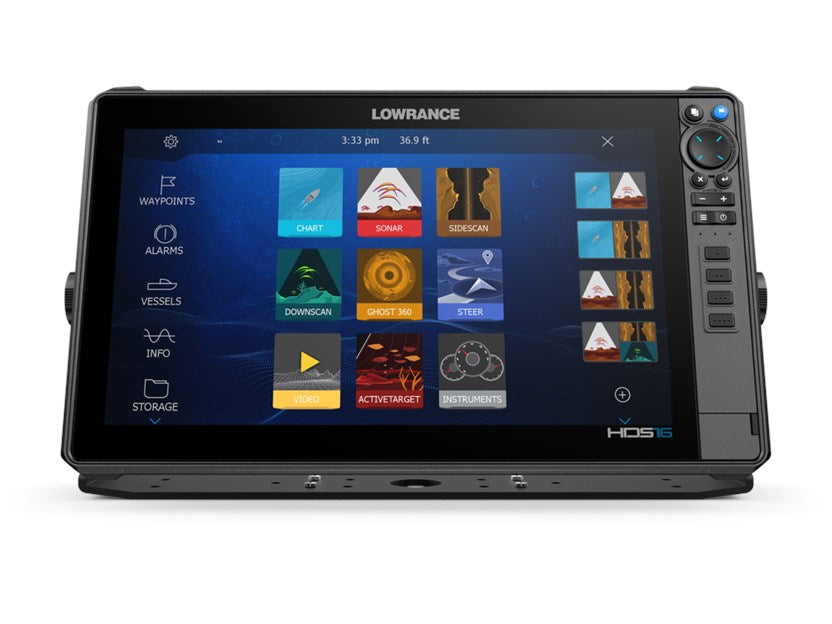

HDS PRO 16 Fish Finders

HDS PRO 16 Fish Finders

Product description
Features
Specs
What's In The Box?
Shipping & Return
Product reviews



See more. Catch more


Experience the next level of fishfinding with new HDS® PRO displays, featuring the ultimate clarity of enhanced Lowrance sonar, the latest C-MAP® charts and easy bow-to-stern control.


New Lowrance sonar


See more and catch more with the new HDS® PRO, giving you the clearest and most-detailed views with new, higher-resolution ActiveTarget® 2 Live Sonar and new, ultra high-definition Active Imaging™ HD.

Active Imaging™ HD


Our clearest sonar ever, Active Imaging™ HD delivers high-definition views of Lowrance CHIRP sonar, SideScan and DownScan Imaging™.




FishReveal™


FishReveal™ has also been expanded to be available on SideScan* and DownScan, making fish easier to identify to the sides and beneath the boat.

*SideScan with FishReveal™ requires S3100 module and compatible transducer


ActiveTarget® 2 Live Sonar


ActiveTarget® 2 Live Sonar provides higher-resolution views of fish movement and structure.




Additional live sonar views


HDS® PRO also supports plug-and-play installation of two ActiveTarget® systems, making it possible to watch multiple views simultaneously, and to widen Front and Scout modes for better bait tracking.


C-MAP® Navigation


Spend more time catching fish and less time finding them with pre-loaded C‑MAP® charts.




All the chart details – preloaded


Get full-featured vector charts, custom depth shading, high-res coastal coverage and 1-foot contours on more than 19,000 lakes across the U.S. and more than 9,400 in Canada.




Third-party compatibility


For anglers that want to select their own chart, HDS® PRO supports a wide range of third-party chart options, including C-MAP®, Navionics®, Florida Marine Tracks and more.
Shop C-MAP charts
New chart overlay
HDS® PRO also introduces a new chart overlay option, allowing you to view ActiveTarget® Scout Mode or Ghost® 360 trolling motor mode directly on the chart screen.



Ultimate clarity


The better your view, the better your fishing.

From the high-definition touchscreen display to the high-level clarity of the newly-enhanced Lowrance sonar, HDS® PRO delivers a full range of meaningful underwater views that will take your fishing experience from good to great.

SolarMAX™ HD


The SolarMAX™ HD touchscreen provides stunning images of fish, structure and chart details that are easy to see from any angle, in direct sunlight and through polarized lenses – a real difference maker on the water.


Complete bow-to-stern boat control


HDS® PRO gives you full bow-to-stern networking and expanded control of the Ultimate Fishing System.




The Ultimate Fishing System


With HDS® PRO at the heart of your fishing system, it’s easy to customize your boat to fit the way you fish with your choice of fish-finding, navigation, network and entertainment options.




Connectivity


Expand your system -- taking advantage of radar, autopilot and NMEA 2000® compatibility -- and add SiriusXM® Weather/Audio to monitor changing weather conditions and to listen to your favorite tunes.

Built-in support


HDS® PRO offers support for the complete range of top fish-finding technologies – from ActiveTarget® 2 Live Sonar and Active Imaging™ HD to touchscreen control of Ghost® Trolling Motor, Power-Pole® Anchors and more.



More options


The expanded options and capabilities of HDS® PRO give you more ways to customize your boat to better fit your fishing needs.


Plug-and-play


Beyond the 9, 10, 12 and 16-inch screen sizes, HDS® PRO can also be expanded to deliver additional views and features. With plug-and-play installation, expanding your fishing has never been easier.


FishReveal™ SideScan


Simply add an S3100 sonar module and compatible Active Imaging™ HD transducer to enable the new FishReveal™ SideScan view, making it easier to identify fish to the sides of the boat.
Shop S3100 module


Multiple live sonar views


Anglers can also add a second ActiveTarget® system to better target fish by viewing multiple ActiveTarget® 2 Live Sonar displays at the same time.

<div class="metafield-rich_text_field"><ul><li>SolarMAX™ HD Touchscreen viewable at extreme angles and through polarized lenses</li><li>New! High-definition up to 1.2MHz Active Imaging™ HD ready (Lowrance CHIRP/SideScan/DownScan Imaging™)</li><li>New! High-resolution ActiveTarget® 2 Live Sonar ready</li><li>FishReveal™ with new SideScan view, as well as Downscan*</li><li>Available in 9, 10, 12 and 16-inch display size</li><li>Preloaded C-MAP® DISCOVER OnBoard charts with 1-foot contours on 19,000+ US Lakes, 9,400+ Canadian Lakes or worldwide basemap</li><li>Real-time mapping available with C-MAP® Genesis Live.</li><li>Support for new ActiveTarget® Scout and Ghost® Trolling Motor 360 chart overlay views</li><li>Large programmable keys for 10, 12 and 16-inch sizes</li><li>Touchscreen control of Power-Pole® anchors, Ghost® Trolling Motor, Autopilot and Lowrance Outboard Pilot</li><li>NMEA 2000®, Wireless and Bluetooth®, connectivity – plus smartphone notifications</li><li>Wide range of optional chart upgrades including C-MAP® REVEAL, Navionics®, Florida Marine Tracks and more.</li></ul><p>*SidescanFishReveal requires S3100 module and a compatible transducer</p></div>
<div class="metafield-rich_text_field"><p><strong>Backlight Color:</strong> Pure White LED</p><p><strong>Display Resolution:</strong> 1920 × 1080 Full HD</p><p><strong>Screen Brightness:</strong> &gt;1200 nits</p><p><strong>Viewing Angles:</strong> 80° top/bottom • 80° left/right</p><p><strong>Bluetooth:</strong> Integrated Bluetooth 4.0 • Supports Bluetooth Classic</p><p><strong>Ethernet Ports:</strong> 2 × 100 Mbit • Up to 6 MFDs on a network</p><p><strong>Wi-Fi:</strong> Internal 802.11 b/g/n • Compatible with WiFi-1 module</p><p><strong>NMEA 2000 Connectivity:</strong> 1 × Micro-C</p><p><strong>NMEA 0183 Sentences Supported:</strong> • GPS: GGA • GLL • GSA • GSV • VTG • ZDA • GLX • Navigation: RMC • AAM • APB • BOD • BWC • BWR • RMB • XTE • XDR • Sonar: DBT • DPT • MTW • VLW • VHM • Compass: HDG • HDT • HDM • Wind: MWV • MWD • AIS/DSC: DSC • DSE • VDM</p><p><strong>SD Card Storage:</strong> 2 × microSD • Up to 32 GB each</p><p><strong>Video:</strong> • Output: None • Input: Composite RCA (via optional adapter)</p><p><strong>Supported Charts:</strong> • C-MAP Reveal • C-MAP Discover • C-MAP MAX-N/MAX-N+ • C-MAP Genesis • Precision Contour HD (Americas) • Navionics Gold/NAV+/Platinum+ • Insight Pro/HD • Regional mapping partners</p><p><strong>Autopilot Maneuvers:</strong> • Turn • Course • Heading • Waypoint • Power Steer • U-Turn • C-Turn • Spiral • Zigzag • Square • Lazy-S</p><p><strong>Autopilot Steering Modes:</strong> Course • Heading • Waypoint • Power Steer</p><p><strong>Regulatory Approvals:</strong> FCC • Industry Canada • RED • ACMA • RSM</p><p><strong>Power Consumption (Max):</strong> 4.1A @ 13V DC</p><p><strong>Power Consumption (Min):</strong> 3.0A @ 13V DC</p><p><strong>Power Consumption (Typical):</strong> 3.0A @ 13V DC</p><p><strong>Supply Voltage:</strong> 12V DC (10.8–17V DC)</p><p><strong>Recommended Fuse Rating:</strong> 5A</p><p><strong>Humidity:</strong> IEC 60945 • Damp Heat 150°F (66°C) at 95% RH for 48 hrs</p><p><strong>Operating Temperature Range:</strong> 5°F to 131°F (-15°C to 55°C)</p><p><strong>Storage Temperature Range:</strong> 4°F to 140°F (-20°C to 60°C)</p><p><strong>Shock &amp; Vibration:</strong> 100,000 cycles • 20 G</p><p><strong>Waterproof Rating:</strong> IPX7 (card door closed)</p><p><strong>GPS Correction:</strong> DGPS • WAAS</p><p><strong>GPS Channels:</strong> 16</p><p><strong>Position Accuracy:</strong> 20 m RMS</p><p><strong>Time to First Fix:</strong> 30 seconds</p><p><strong>Update Rate:</strong> 10 Hz</p><p><strong>AIS:</strong> Chart &amp; radar overlay • Target vessel details</p><p><strong>Autopilot Compatibility:</strong> Outboard Pilot • NAC-1 • NAC-2 • Ghost Trolling Motor • MotorGuide Xi5/Xi3 (requires PinPoint Gateway)</p><p><strong>Included Cartography:</strong> • C-MAP Discover OnBoard (Americas) • C-MAP World Background (ROW) • Navionics basemap</p><p><strong>Digital Switching:</strong> CZone • Naviop</p><p><strong>Internal Storage:</strong> 8 GB</p><p><strong>Multimedia Support:</strong> SonicHub • SonicHub2 • FusionLink • NMEA 2000 marine audio products</p><p><strong>Integrated Sonar:</strong> CHIRP • Broadband • Active Imaging DownScan • Active Imaging SideScan • Active Imaging HD DownScan • Active Imaging HD SideScan</p><p><strong>Compatible Sonar Modules:</strong> ActiveTarget • ActiveTarget 2 • S3100 • SonarHub • StructureScan • StructureScan HD • StructureScan 3D • LiveSight (requires PSI-1)</p><p><strong>Waypoints / Routes / Trails:</strong> 3000 waypoints • 100 routes • 100 trails (10,000 points each)</p><p><strong>Weather Support:</strong> SiriusXM via WM-3 or WM-4 (USA only)</p><p><strong>Compass Safe Distance:</strong> 65 cm (2.1 ft)</p><p><strong>Dimensions (W × H × D):</strong> 16.95” × 10.20” × 3.46” (430.5 × 259.2 × 87.8 mm)</p><p><strong>Mounting Options:</strong> Gimbal bracket • Front dash flush • Rear dash flush</p><p><strong>Weight:</strong> 7.94 lb (3.60 kg)</p><p><strong>Interface:</strong> Full multi-touch touchscreen • Keypad with 8-way directional pad • Zoom ± • Exit • Enter • Menu • Waypoint • Power/Light • 4 programmable quick access keys</p><p><strong>Languages Supported:</strong> Standard • Asian • Eastern European • Russia/Ukraine • Middle Eastern packs</p><p><strong>Warranty:</strong> 2 years + 3 years additional upgrade options (total 5 years)</p></div>
<div class="metafield-rich_text_field"><ul><li>HDS-16 LIVE/PRO Suncover</li><li>HDS-16 LIVE/PRO Bracket</li></ul></div>

Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.

We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 14 days of delivery.
