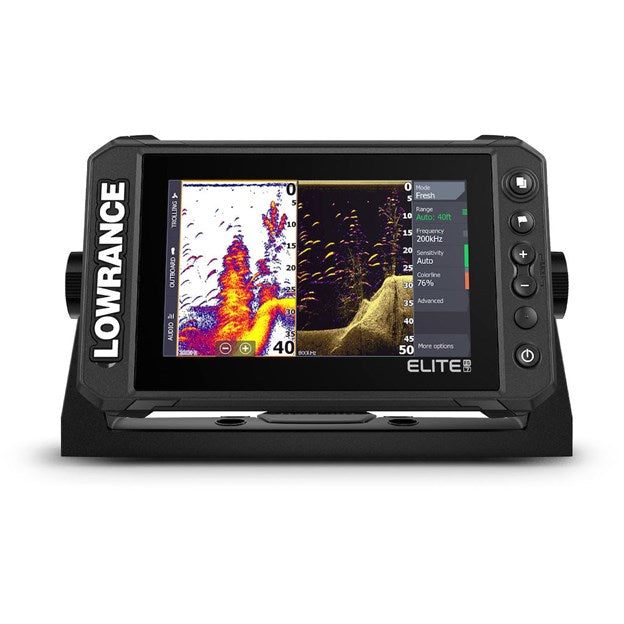

Elite FS 7 Fish Finders
Elite FS 7 Fish Finders

Elite FS 7 Fish Finders

Regular price $1,034.55 CAD
Sale price $1,034.55 CAD Regular price $1,089.00 CAD
Unit price
  • SKU:
    000-15703-001
In Stock
20 people are viewing this right now
Ask a question

Ask a Question

* Required fields

 Size guide Share
Elite FS 7 Fish Finders

Elite FS 7 Fish Finders

Product description
Features
Specs
What's In The Box?
Shipping & Return
Product reviews

The Elite Fishing System

The Elite Fishing System (FS) combines the power of Lowrance’s proven and newest fishfinding tools with a more affordable display that’s easier to use and install. From integrated support for ActiveTarget™ 2 live sonar and extreme high-resolution Active Imaging™ and Active Imaging HD* with Lowrance CHIRP sonar, SideScan and DownScan Imaging™ with FishReveal™ to preloaded C-MAP® DISCOVER OnBoard fishing maps, Elite FS gives you all the tools you need to find and catch more fish.

*Active Imaging HD requires S3100 Module

[youtube id="BXq2LC-3fHU"]

TARGET FISH LIVE WITH ACTIVETARGET 2 LIVE SONAR

Fish smarter when you know exactly what fish are doing – in real time – with ActiveTarget™ 2 Live Sonar. Enjoy high-resolution views of fish movements, tracking them as they swim in and around cover.

Watch their real-time response to your lure and you will know if your current technique is working or if it’s time to switch things up.

Note: No ActiveTarget 2 split screen options in 10 & 12 models

FIND MORE FISH WITH ACTIVE IMAGING 3-IN-1

See structure and cover with a new level of refined detail and at a range unmatched by any other structure imaging technology with Active Imaging™  and Active Imaging™ HD* 3-in-1 sonar featuring CHIRP, SideScan and DownScan Imaging™ with FishReveal™.

Get the best of CHIRP sonar and DownScan Imaging™ on one screen with FishReveal, a Lowrance exclusive that helps you easily recognize fish from structure and cover on high-detailed DownScan images.

*Active Imaging HD requires S3100 Module

FIND KEY FISHING AREAS WITH C-MAP DISCOVER ONBOARD

Spend more time trying to catch fish and less time trying to find them with the high-resolution detail of C-MAP® Discover Onboard inland and coastal charts built into Elite FS displays.

From finding key fishing areas, like ledges, drop-offs and ditches to navigating with precision to fish-holding areas, you will have more success on the water with high-resolution 1-foot contours on 19,000 lakes across the U.S. and more than 9,400 in Canada.

<div class="metafield-rich_text_field"><ul><li>ActiveTarget® 2 Live Sonar ready</li><li>Active Imaging 3-in-1 ready</li><li>FishReveal™</li><li>Preloaded C-MAP® Contour+ inland and coastal charts with high resolution, bathymetric 1-foot contours on 15,000+ U.S. Lakes and 9,400+ lakes in Canada</li><li>Mapping options including C-MAP, Navionics® and more</li><li>C-MAP® Easy Routing, Navionics® Autorouting capability</li><li>C-MAP Genesis Live onscreen mapping</li><li>High-resolution multi-touch touchscreen</li><li>Integrated wireless, NMEA 2000® and Ethernet connectivity</li><li>Full touchscreen control of Power Pole® anchors, and Recon™ and Ghost® Trolling Motor</li></ul></div>
<div class="metafield-rich_text_field"><h3>Display</h3><p><strong>Backlight Color:</strong> Pure White LED</p><p><strong>Display Resolution:</strong> 800 x 480</p><p><strong>Screen Brightness:</strong> &gt;1200 nits</p><p><strong>Viewing Angles:</strong> 50° top • 60° bottom • 70° left/right</p><h3>Connectivity</h3><p><strong>Bluetooth:</strong> Integrated Bluetooth 4.0 (supports Bluetooth Classic)</p><p><strong>Ethernet Ports:</strong> 1 x 100Mbit</p><p><strong>Wi-Fi:</strong> Internal 802.11b/g/n</p><p><strong>NMEA 2000 Connectivity:</strong> 1x Micro-C</p><p><strong>NMEA 0183 Sentences Supported:</strong> None</p><p><strong>SD Card Storage:</strong> 1 microSD card (up to 32GB)</p><p><strong>Video:</strong> None</p><h3>Cartography</h3><p><strong>Charts Supported:</strong> C-MAP (MAX N, MAX N+), C-MAP Genesis, C-MAP Precision Contour HD (AMER only), Navionics (Gold, NAV+ Platinum+), Insight (Pro and HD), Lowrance Regional Mapping Partners</p><h3>Electrical</h3><p><strong>Power Consumption (Max):</strong> 2.0A @ 13VDC (backlight on full)</p><p><strong>Power Consumption (Min):</strong> 2.0A @ 13VDC (backlight on full)</p><p><strong>Power Consumption (Typical):</strong> 2.0A @ 13VDC (backlight on full)</p><p><strong>Recommended Fuse Rating:</strong> 3A</p><p><strong>Supply Voltage:</strong> 12V DC (10.8–17VDC)</p><h3>Environment</h3><p><strong>Humidity:</strong> 60°C, 95% RH for 18 hours</p><p><strong>Operating Temperature Range:</strong> 5°F to 131°F (-15°C to 55°C)</p><p><strong>Shock &amp; Vibration:</strong> 100,000 cycles of 20 G</p><p><strong>Storage Temperature Range:</strong> 4°F to 140°F (-20°C to 60°C)</p><p><strong>Waterproof Rating:</strong> IPX7 (with card door closed)</p><h3>GPS</h3><p><strong>Correction:</strong> DGPS • WAAS • MSAS • EGNOS • GLONASS</p><p><strong>Receiver Channels:</strong> 16</p><p><strong>Position Accuracy:</strong> 20m RMS</p><p><strong>Time to First Fix:</strong> 30s</p><p><strong>Update Rate:</strong> 10 Hz</p><h3>MFD</h3><p><strong>AIS:</strong> AIS Chart Overlay, Target Vessel Details</p><p><strong>Autopilot:</strong> Outboard Pilot</p><p><strong>Compatible Trolling Motors:</strong> Ghost Trolling Motor • MotorGuide Xi5/Xi3 (requires Motorguide PinPoint Gateway)</p><p><strong>Cartography Included:</strong> C-MAP Contour+ (US models) • Navionics basemap (AMER, AUS/NZ, ROW models)</p><p><strong>Digital Switching:</strong> None</p><p><strong>GPS:</strong> 10 Hz Internal High-Sensitivity WAAS + EGNOS + MSAS</p><p><strong>Internal Storage:</strong> None</p><p><strong>Multimedia:</strong> SonicHub • SonicHub2 • FusionLink • any NMEA 2000 compliant Marine Audio products</p><p><strong>Sonar Compatibility:</strong> Integrated CHIRP • Broadband • Active Imaging DownScan • Active Imaging SideScan • Compatible with SonarHub, StructureScan, StructureScan 3D, LiveSight, Active Target</p><p><strong>Waypoints, Routes, Tracks:</strong> 3000 Waypoints • 100 Routes • 100 Trails (up to 10,000 points per trail)</p><p><strong>Weather:</strong> SiriusXM via WM-4 (USA only)</p><h3>Physical</h3><p><strong>Compass Safe Distance:</strong> 12&quot; (300mm)</p><p><strong>Mounting Type:</strong> Gimbal Bracket or Dash Flush Mount</p><p><strong>Weight:</strong> 1.90 lbs (0.90 kg)</p><h3>Other</h3><p><strong>Interface:</strong> Multi-Touch Touchscreen • Zoom +/- • MOB (+/- combined) • Pages • Waypoint • Light/Power</p><p><strong>Languages:</strong> <br /> • Standard Pack: Afrikaans, Danish, German, English (US/UK), Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese (BR/PT), Swedish <br /> • Asian Pack: English (US/UK), Japanese, Korean, Thai, Simplified Chinese, Traditional Chinese <br /> • Eastern European Pack: Bulgarian, German, Estonian, English (US/UK), Spanish, French, Hebrew, Croatian, Hungarian, Italian, Lithuanian, Latvian, Polish, Slovak, Turkish <br /> • Russia/Ukraine Pack: German, English (US/UK), Spanish, Italian, Russian, Ukrainian <br /> • Middle Eastern Pack: Arabic (UAE), German, English (US/UK), Farsi, French, Italian<br /> </p><p><strong>Warranty Period:</strong> 2 Years + 3 additional years of upgrade options (totaling 5 years)</p></div>
<div class="metafield-rich_text_field"><ul><li>HDS/Elite/Hook/Mark Power Only Cable</li><li>Fuse and fuse holder</li><li>HDS-7 LIVE / Elite F 7 Bracket</li><li>Elite FS 7 Suncover</li></ul></div>

Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.

We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 14 days of delivery.
