The Elite Fishing System

The Elite Fishing System (FS) combines the power of Lowrance’s proven and newest fishfinding tools with a more affordable display that’s easier to use and install. From integrated support for ActiveTarget™ 2 live sonar and extreme high-resolution Active Imaging™ and Active Imaging HD* with Lowrance CHIRP sonar, SideScan and DownScan Imaging™ with FishReveal™ to preloaded C-MAP® DISCOVER OnBoard fishing maps, Elite FS gives you all the tools you need to find and catch more fish.

*Active Imaging HD requires S3100 Module

[youtube id="BXq2LC-3fHU"]

TARGET FISH LIVE WITH ACTIVETARGET 2 LIVE SONAR

Fish smarter when you know exactly what fish are doing – in real time – with ActiveTarget™ 2 Live Sonar. Enjoy high-resolution views of fish movements, tracking them as they swim in and around cover.

Watch their real-time response to your lure and you will know if your current technique is working or if it’s time to switch things up.

Note: No ActiveTarget 2 split screen options in 10 & 12 models

FIND MORE FISH WITH ACTIVE IMAGING 3-IN-1

See structure and cover with a new level of refined detail and at a range unmatched by any other structure imaging technology with Active Imaging™  and Active Imaging™ HD* 3-in-1 sonar featuring CHIRP, SideScan and DownScan Imaging™ with FishReveal™.

Get the best of CHIRP sonar and DownScan Imaging™ on one screen with FishReveal, a Lowrance exclusive that helps you easily recognize fish from structure and cover on high-detailed DownScan images.

*Active Imaging HD requires S3100 Module

FIND KEY FISHING AREAS WITH C-MAP DISCOVER ONBOARD

Spend more time trying to catch fish and less time trying to find them with the high-resolution detail of C-MAP® Discover Onboard inland and coastal charts built into Elite FS displays.

From finding key fishing areas, like ledges, drop-offs and ditches to navigating with precision to fish-holding areas, you will have more success on the water with high-resolution 1-foot contours on 19,000 lakes across the U.S. and more than 9,400 in Canada.

  • ActiveTarget™ Live Sonar ready
  • Active Imaging 3-in-1 ready
  • FishReveal™
  • Preloaded C-MAP® Discover Onboard™ inland and coastal charts with high resolution, bathymetric 1-foot contours on 15,000+ U.S. lakes and 9,400+ lakes in Canada
  • Mapping options including C-MAP®, Navionics® and more
  • C-MAP® Easy Routing, Navionics® Autorouting capability
  • C-MAP Genesis Live onscreen mapping
  • High-resolution multi-touch touchscreen
  • Integrated wireless, NMEA 2000® and Ethernet connectivity
  • Full touchscreen control of Power Pole® anchors, and Recon™ and Ghost® Trolling Motor

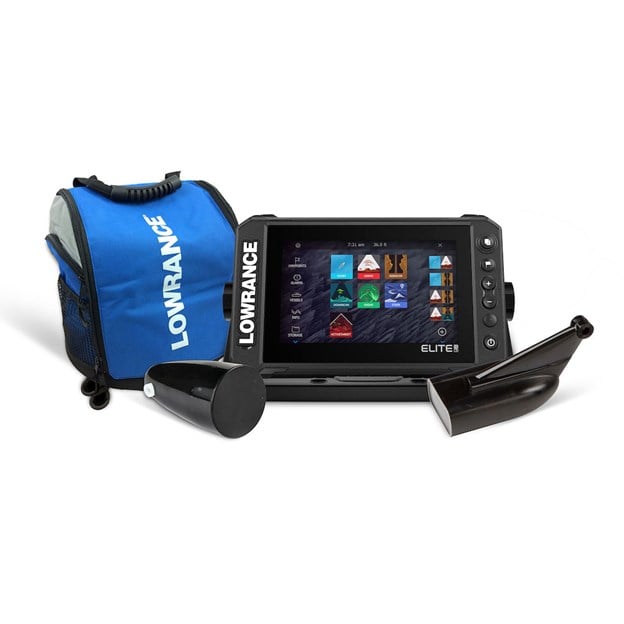

  • Kit includes: Elite FS 7, carrying bag, HDI skimmer transducer, suction cup mount, ice transducer, mounting platform, power cable, 12V battery and charger

Display

Backlight Color: Pure White LED

Display Resolution: 800 x 480

Screen Brightness: >1200 nits

Viewing Angles: 50° top • 60° bottom • 70° left/right

Connectivity

Bluetooth: Integrated Bluetooth 4.0 (supports Bluetooth Classic)

Ethernet Ports: 1 x 100Mbit

Wi-Fi: Internal 802.11b/g/n

NMEA 2000 Connectivity: 1x Micro-C

NMEA 0183 Sentences Supported: None

SD Card Storage: 1 microSD card (up to 32GB)

Video: None

Cartography

Charts Supported: C-MAP (MAX N, MAX N+), C-MAP Genesis, C-MAP Precision Contour HD (AMER only), Navionics (Gold, NAV+ Platinum+), Insight (Pro and HD), Lowrance Regional Mapping Partners

Electrical

Power Consumption (Max): 2.0A @ 13VDC (backlight on full)

Power Consumption (Min): 2.0A @ 13VDC (backlight on full)

Power Consumption (Typical): 2.0A @ 13VDC (backlight on full)

Recommended Fuse Rating: 3A

Supply Voltage: 12V DC (10.8–17VDC)

Environment

Humidity: 60°C, 95% RH for 18 hours

Operating Temperature Range: 5°F to 131°F (-15°C to 55°C)

Shock & Vibration: 100,000 cycles of 20 G

Storage Temperature Range: 4°F to 140°F (-20°C to 60°C)

Waterproof Rating: IPX7 (with card door closed)

GPS

Correction: DGPS • WAAS • MSAS • EGNOS • GLONASS

Receiver Channels: 16

Position Accuracy: 20m RMS

Time to First Fix: 30s

Update Rate: 10 Hz

MFD

AIS: AIS Chart Overlay, Target Vessel Details

Autopilot: Outboard Pilot

Compatible Trolling Motors: Ghost Trolling Motor • MotorGuide Xi5/Xi3 (requires Motorguide PinPoint Gateway)

Cartography Included: C-MAP Contour+ (US models) • Navionics basemap (AMER, AUS/NZ, ROW models)

Digital Switching: None

GPS: 10 Hz Internal High-Sensitivity WAAS + EGNOS + MSAS

Internal Storage: None

Multimedia: SonicHub • SonicHub2 • FusionLink • any NMEA 2000 compliant Marine Audio products

Sonar Compatibility: Integrated CHIRP • Broadband • Active Imaging DownScan • Active Imaging SideScan • Compatible with SonarHub, StructureScan, StructureScan 3D, LiveSight, Active Target

Waypoints, Routes, Tracks: 3000 Waypoints • 100 Routes • 100 Trails (up to 10,000 points per trail)

Weather: SiriusXM via WM-4 (USA only)

Physical

Compass Safe Distance: 12" (300mm)

Mounting Type: Gimbal Bracket or Dash Flush Mount

Weight: 1.90 lbs (0.90 kg)

Other

Interface: Multi-Touch Touchscreen • Zoom +/- • MOB (+/- combined) • Pages • Waypoint • Light/Power

Languages:
• Standard Pack: Afrikaans, Danish, German, English (US/UK), Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese (BR/PT), Swedish
• Asian Pack: English (US/UK), Japanese, Korean, Thai, Simplified Chinese, Traditional Chinese
• Eastern European Pack: Bulgarian, German, Estonian, English (US/UK), Spanish, French, Hebrew, Croatian, Hungarian, Italian, Lithuanian, Latvian, Polish, Slovak, Turkish
• Russia/Ukraine Pack: German, English (US/UK), Spanish, Italian, Russian, Ukrainian
• Middle Eastern Pack: Arabic (UAE), German, English (US/UK), Farsi, French, Italian

Warranty Period: 2 Years + 3 additional years of upgrade options (totaling 5 years)
