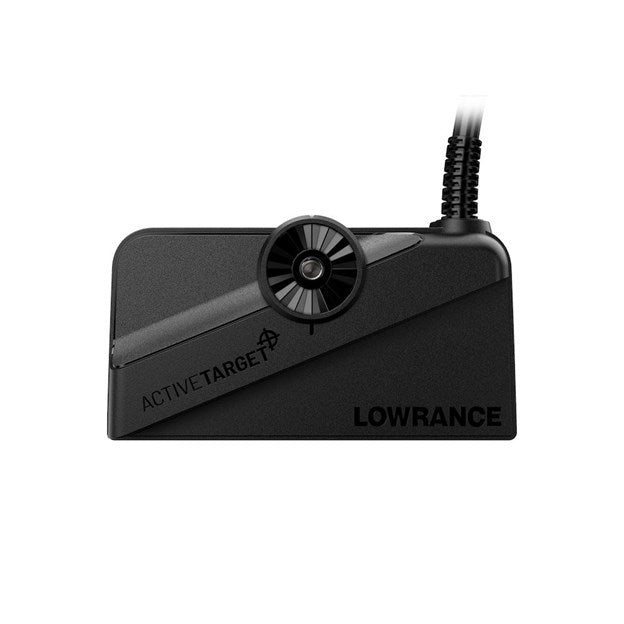

ActiveTarget™ Transducers
ActiveTarget™ Transducers

ActiveTarget™ Transducers

Regular price $1,785.05 CAD
Sale price $1,785.05 CAD Regular price $1,879.00 CAD
Unit price
  • SKU:
    000-15593-001
In Stock
21 people are viewing this right now
Ask a question

Ask a Question

* Required fields

 Size guide Share
ActiveTarget™ Transducers

ActiveTarget™ Transducers

Product description
Features
Specs
What's In The Box?
Shipping & Return
Product reviews

[youtube id="u1La5Wmn9ww"]


ActiveTarget™ Live Sonar – Game On!

Watch high-resolution images of fish movements – tracking them as they swim in and around cover with ActiveTarget™ Live Sonar. When you see how fish are located near structure and watch them respond to your lure, you will know if your current technique is working, or if it’s time to make an adjustment – information that is harder to get from traditional sonar or structure imaging.



Track fish and your presentation with high-resolution views in front or below your boat, or use the Scout mode to see an ultra-wide, overhead view of structure and fish activity in front of your boat, perfect for finding bait balls and big schools of fish.



ActiveTarget is compatible with Lowrance HDS LIVE, HDS Carbon and Elite FS fish finder/chartplotters.

<div class="metafield-rich_text_field"><ul><li>Get three views from one transducer: Forward view ahead of your boat, Down view below your boat or Scout view – an ultra-wide, overhead view in front of your boat</li><li>See how fish are positioned in and around structure and watch them respond to your lure as it happens</li><li>High-resolution live images remove the guesswork from sonar interpretation</li><li>Know whether fish are active</li><li>Compatible with HDS LIVE, HDS Carbon and Elite FS</li></ul></div>
<div class="metafield-rich_text_field"><p><strong>Backlight Color:</strong> N/A</p><p><strong>Display Resolution:</strong> N/A</p><p><strong>Screen Brightness:</strong> N/A</p><p><strong>Viewing Angles:</strong> N/A</p><p><strong>Bluetooth:</strong> N/A</p><p><strong>Ethernet Ports:</strong> 1 × 100 Mbit Ethernet port</p><p><strong>Wi-Fi:</strong> N/A</p><p><strong>NMEA PGNs:</strong> N/A</p><p><strong>NMEA 0183 Support:</strong> N/A</p><p><strong>NMEA 2000 Connectivity:</strong> N/A</p><p><strong>PC Connectivity:</strong> N/A</p><p><strong>Video:</strong> N/A</p><p><strong>Chart Format:</strong> N/A</p><p><strong>Power Consumption (Max):</strong> 1.5A @ 13.8V DC</p><p><strong>Power Consumption (Typical):</strong> 1.5A @ 13.8V DC</p><p><strong>Recommended Fuse Rating:</strong> 3A</p><p><strong>Supply Voltage:</strong> 10.8–31.2V DC</p><p><strong>Humidity:</strong> 60°C • 95% RH for 18 hrs</p><p><strong>Operating Temperature Range:</strong> 5°F to 131°F (-15°C to 55°C)</p><p><strong>Shock &amp; Vibration:</strong> 100,000 cycles • 20 G</p><p><strong>Storage Temperature Range:</strong> -22°F to 158°F (-30°C to 70°C)</p><p><strong>Waterproof Rating:</strong> IP67</p><p><strong>Compass Safe Distance:</strong> N/A</p><p><strong>Dimensions (W × H × D):</strong> • Module: 8.63&quot; (219.3 mm) × 7.56&quot; (192.1 mm) × 2.86&quot; (72.9 mm) • Transducer: 5.90&quot; (149.8 mm) × 3.24&quot; (82.4 mm) × 2.28&quot; (58.0 mm)</p><p><strong>Mounting Type:</strong> • Module: Surface Mount • Transducer: Bracket Mount</p><p><strong>Weight:</strong> • Module: 4.12 lbs (1.86 kg) • Transducer: 2.67 lbs (1.21 kg)</p><p><strong>Interface:</strong> Ethernet to HDS Pro • HDS Live • HDS Carbon • Elite FS</p><p><strong>Languages:</strong> N/A</p><p><strong>Warranty:</strong> 2 years + 3 years in-service repairs or upgrades</p></div>

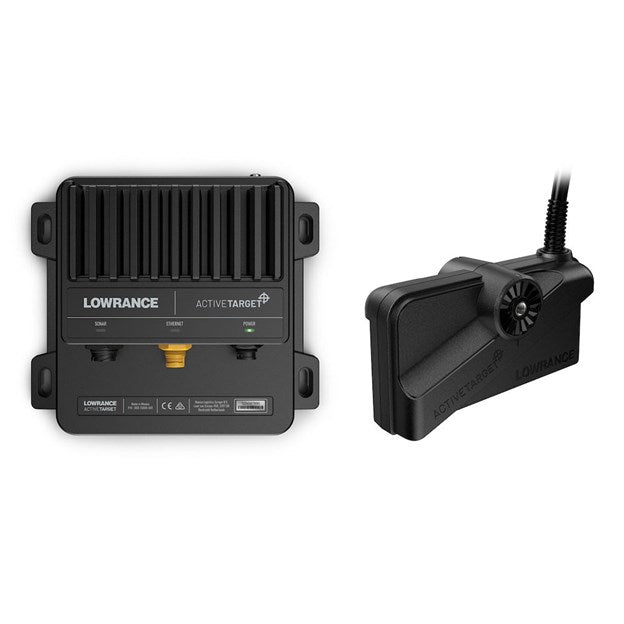

<div class="metafield-rich_text_field"><ul><li>Ethernet Cable, 15ft</li><li>Power Cable, 4-Pin</li><li>ActiveTarget™ Trolling Motor Shaft Mount</li><li>ActiveTarget™ Trolling Motor Forward/Down Mount Kit</li><li>ActiveTarget™ Trolling Motor Scout Mount Kit</li><li>ActiveTarget™ Transducer Only</li><li>ActiveTarget™ Module Only</li></ul></div>

Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.

We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 14 days of delivery.
