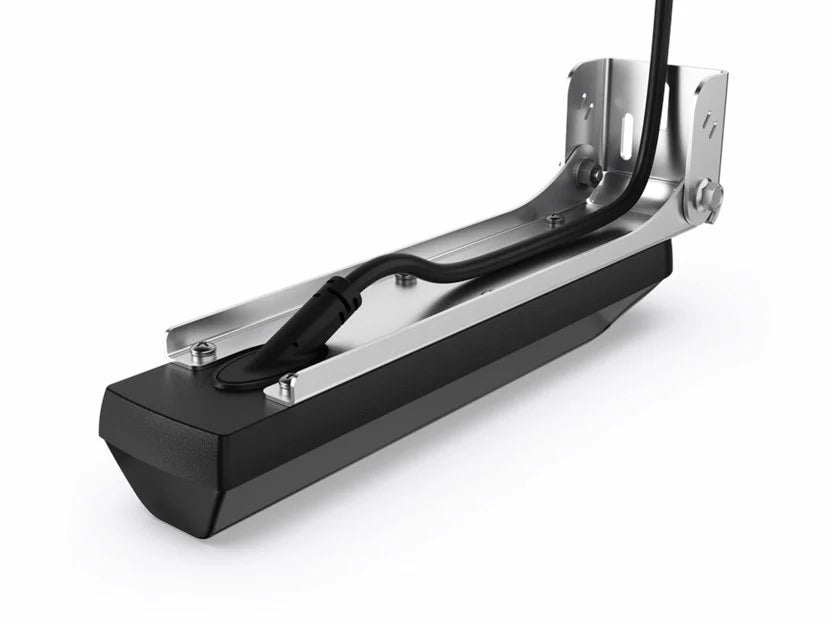

Active Imaging HD Transducers

Active Imaging HD Transducers

Regular price $611.10 CAD
Sale price $611.10 CAD Regular price $679.00 CAD
Unit price
  • SKU:
    000-16060-001
In Stock
20 people are viewing this right now
Ask a question

Ask a Question

* Required fields

 Size guide Share
Active Imaging HD Transducers

Active Imaging HD Transducers

Product description
Features
Specs
What's In The Box?
Shipping & Return
Product reviews

See the difference

Our clearest sonar ever, Active Imaging™ HD delivers the highest-definition views of Lowrance® CHIRP, SideScan and DownScan Imaging™.

Active Imaging™ HD 3-in-1

Experience a new level of clarity and improved target separation with extremely detailed views of fish and fish-holding structure like rockpiles, standing timber, weedbeds, ditches, drop-offs and more.

DownScan HD Imaging

DownScan Imaging™ makes it easier to identify how fish are relating to structure, providing photo-like images of rocks, trees, bottom composition and other underwater structure directly beneath the boat.

SideScan HD Imaging

Perfect for searching large areas for fish-holding structure, allowing you to cover more water in a shorter period of time, and view areas too shallow for your boat – like next to the shore or bank.

CHIRP Sonar

See fish, structure and the bottom with greater clarity with Lowrance CHIRP, which delivers the best views of individual fish targets.

Complete FishReveal™ views

Get the best of CHIRP sonar and Imaging sonar on one display with FishReveal™.

FishReveal™ SideScan

First introduced with DownScan Imaging™, FishReveal is now available on SideScan*, making it quicker and easier to recognize fish targets – along with picture-like images of structure on both sides of your boat.

*FishReveal SideScan view requires an optional S3100 sonar module.

Designed for clarity

The Active Imaging™ HD transducer not only delivers three key sonar technologies – Lowrance® CHIRP, SideScan and DownScan Imaging™ – in one convenient package, but also features a new transducer design that boosts signal clarity.

Compatibility

HDS® PRO comes with support for Active Imaging HD. HDS® LIVE, HDS® Carbon, and Elite FS® require an S3100 Sonar Module.

<div class="metafield-rich_text_field"><ul><li>High definition (up to 1.2MHz) SideScan and DownScan Imaging deliver the clearest images of fish and structure</li><li>CHIRP with superb clarity and target separation</li><li>FishReveal™ with new SideScan* view as well DownScan</li><li>Supports Medium and High CHIRP (83/200kHz) + 700/1200kHz and 455/1075kHz frequencies</li><li>Smart transducer design boosts signal clarity</li><li>Compatible with Lowrance HDS PRO and Simrad NSS 4 or with a S3100 module with HDS LIVE, HDS Carbon, Elite FS and Simrad NSSevo3S, NSS evo3 and NSX series displays</li></ul><p>*Requires S3100 sonar module and relevant transducer for Fish Reveal SideScan on HDS PRO and NSS 4</p></div>
<div class="metafield-rich_text_field"><p><strong>Humidity Resistance:</strong> 95% RH at 60°C for 18 hours</p><p><strong>Operating Temperature Range:</strong> 5°F to 131°F (-15°C to 55°C)</p><p><strong>Shock &amp; Vibration:</strong> 100,000 cycles at 20 G</p><p><strong>Storage Temperature Range:</strong> -22°F to 158°F (-30°C to 70°C)</p><p><strong>Waterproof Rating:</strong> IP67</p><p><strong>Mounting Type:</strong> Transducer • Bracket mount</p><p><strong>Weight:</strong> Transducer: 2.67 lbs (1.21 kg)</p><p><strong>Interface:</strong> Direct connect to: HDS Pro • S3100 • Ethernet to: HDS Live • Elite FS (requires S3100 module)</p><p><strong>Warranty:</strong> 1 year standard • 4 additional years upgrade options • Total 5 years</p></div>

Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.

We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 14 days of delivery.
