HELIX® 7 Series Fish Finders

Regular price $799.99 CAD
Sale price $799.99 CAD Regular price
Unit price
  • SKU:
    411920-1
Low stock

- Hurry! Limited stock left.
28 people are viewing this right now
Ask a question

Ask a Question

* Required fields

 Size guide Share
Humminbird HELIX 7 CHIRP SI GPS G4

HELIX® 7 Series Fish Finders

Product description
Features
Specs
What's In The Box?
Shipping & Return
Product reviews

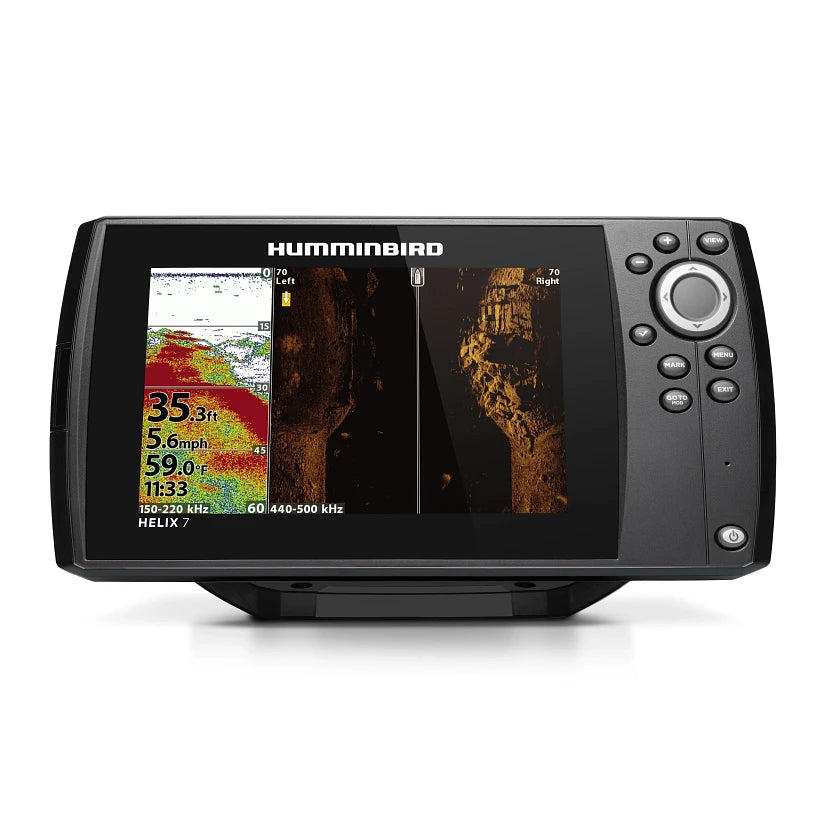

The HELIX 7 SI GPS G4 fish finder features CHIRP Side Imaging, CHIRP Down Imaging, Dual Spectrum CHIRP Sonar, AutoChart Live, Internal GPS and Humminbird Basemap built-in. An upgraded high-definition 7" display will give you the best view of the many pre-loaded split screen view options so that you'll never miss a fish.

<div class="metafield-rich_text_field"><ul><li>Keypad control: Master HELIX at the touch of a button. Access the pre-loaded views from the user-friendly menu system, operated by softkey controls that allow you to reliably operate your fish finder in any conditions.</li><li>CHIRP Down Imaging: Filter out noise and clutter for a clear view beneath your boat. CHIRP Digital Sonar processing of Down Imaging sonar means that you&#39;ll see great detail to make finding the fish simple and easy.</li><li>Dual Spectrum CHIRP sonar: Before you cast, know what&#39;s down there thanks to highly-detailed fish arches and a clear view of fish-holding structure and the bottom. Powered by our proprietary, Low-Q CHIRP transducer, Dual Spectrum CHIRP 2D sonar offers two ways to search; Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail.</li><li>Internal GPS and Humminbird Basemap: Our enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.</li><li>Premium Chart Compatible: Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird&#39;s LakeMaster® and CoastMaster™ products, as well as your choice of compatible Navionics® charts.</li><li>AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually-endless AutoChart Live mapping capacity.</li><li>Includes control head, transom-mount transducer, power cable, gimbal mounting bracket and mounting hardware.</li><li>1-Year Limited Warranty</li></ul></div>
<div class="metafield-rich_text_field"><p><strong>Model:</strong> HELIX 7 SI GPS G4</p><p><strong>Product Code:</strong> 411920-1</p><p><strong>Series:</strong> HELIX</p><p><strong>UPC:</strong> 0082324058288</p><p><strong>Display Size (Diagonal):</strong> 7 in</p><p><strong>Dimensions:</strong>   • Length: 3.06 in | 7.77 cm   • Height: 5.44 in | 13.82 cm   • Width: 10.54 in | 26.77 cm</p><p><strong>Weight:</strong> 2 lb 1.6 oz | 952.54 g</p><p><strong>Display Pixel Matrix:</strong> 1024H x 600V</p><p><strong>Display Type:</strong> Color TFT (16-Bit Grayscale)</p><p><strong>Transducer Included:</strong> XNT 9 HW SI T</p><p><strong>Transducer Mount Location:</strong> Transom</p><p><strong>Compatible With:</strong> Minn Kota US2 Sonar, AIS, AutoPilot</p><p><strong>Features:</strong> Down Imaging, Built-In GPS, Side Imaging, Dual Spectrum CHIRP, Built-In Mapping</p><p><strong>Memory Card Slot:</strong> Single Micro SD</p><p><strong>Sonar Specifications:</strong>   • Standard: Dual Spectrum CHIRP, CHIRP Down Imaging, CHIRP Side Imaging   • Coverage: 20°, 42°, 60°, and (2) 86° @ -10dB   • Optional: 53 kHz, 50/Low Airmar CHIRP   • Live Sonar Coverage: 20° × 120°   • CHIRP Frequencies Supported: Narrow (180–240 kHz), 83/200 (75–155/130–250 kHz), Wide (140–200 kHz), Full (150–220 kHz)   • Sonar Frequencies Supported: 50/83/200/455 kHz   • Depth (Sonar): 3,500 ft (optional 50 kHz), 1,200 ft (standard)   • CHIRP Imaging Frequencies: 455 kHz (420–520 kHz)   • Depth (Down Imaging): 400 ft (455 kHz)   • Range (Side Imaging): 800 ft (455 kHz)   • Target Separation: 2.5 in</p><p><strong>GPS &amp; Mapping:</strong>   • Chartplotting: Included   • GPS Receiver: Internal   • Trackplotting: Included   • Waypoints/Routes/Tracks: 2,750 / 45 / 50 (20,000 points)   • Humminbird Basemap: Included   • LakeMaster / CoastMaster / Navionics (Gold/HotMaps/Platinum+): Compatible</p><p><strong>Mounting Options:</strong>   • Standard Mount: Gimbal (10.54 in W × 5.8 in H × 3.68 in D)   • Optional Mount: In-Dash (10.54 in W × 5.44 in H × 1.13 in D)</p><p><strong>Power:</strong>   • Draw: 800 mA   • Input: 10.8–20 VDC   • Output: 4000 W Peak-to-Peak / 500 W RMS</p><p><strong>Interface:</strong> Keypad Control</p><p><strong>Screen Snapshot:</strong> Included</p><p><strong>Sonar Recording:</strong> Included</p><p><strong>Compatibility:</strong>   • Minn Kota US2 Sonar, AIS, AutoPilot   • Not Compatible: 360 Imaging, MEGA Live, i-Pilot Link, Talon Anchor, Radar, 5-Port Ethernet Switch   • Optional: AIS, Autopilot   • Supported: Heading Sensor GPS   • Not Supported: NMEA2000</p><p><strong>Software &amp; Display Features:</strong>   • Upgradable Software: Yes   • X-Press Menu System: Yes   • Custom Digital Readout: Yes   • Custom View Selections: No   • View Preset Keys: No</p><p><strong>Interference &amp; Noise Control:</strong>   • Interference Rejection: 6 Modes   • Noise Rejection: 6 Steps</p><p><strong>Speed:</strong> Included</p><p><strong>Temperature:</strong> Built-In (with Alarm &amp; Graph)</p><p><strong>HDMI Compatible:</strong> No</p><p><strong>Warranty:</strong> One-Year Warranty</p></div>

Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.

We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 14 days of delivery.
