Humminbird APEX 16 MSI+ CHARTPLOTTER
Humminbird APEX 16 MSI+ CHARTPLOTTER

APEX 16 MSI+ CHARTPLOTTER

Regular price $6,674.99 CAD
Sale price $6,674.99 CAD Regular price
Unit price
  • SKU:
    411500-1
Low stock

- Hurry! Limited stock left.
22 people are viewing this right now
Ask a question

Ask a Question

* Required fields

 Size guide Share
Humminbird APEX 16 MSI+ CHARTPLOTTER

APEX 16 MSI+ CHARTPLOTTER

Product description
Features
Specs
What's In The Box?
Shipping & Return
Product reviews

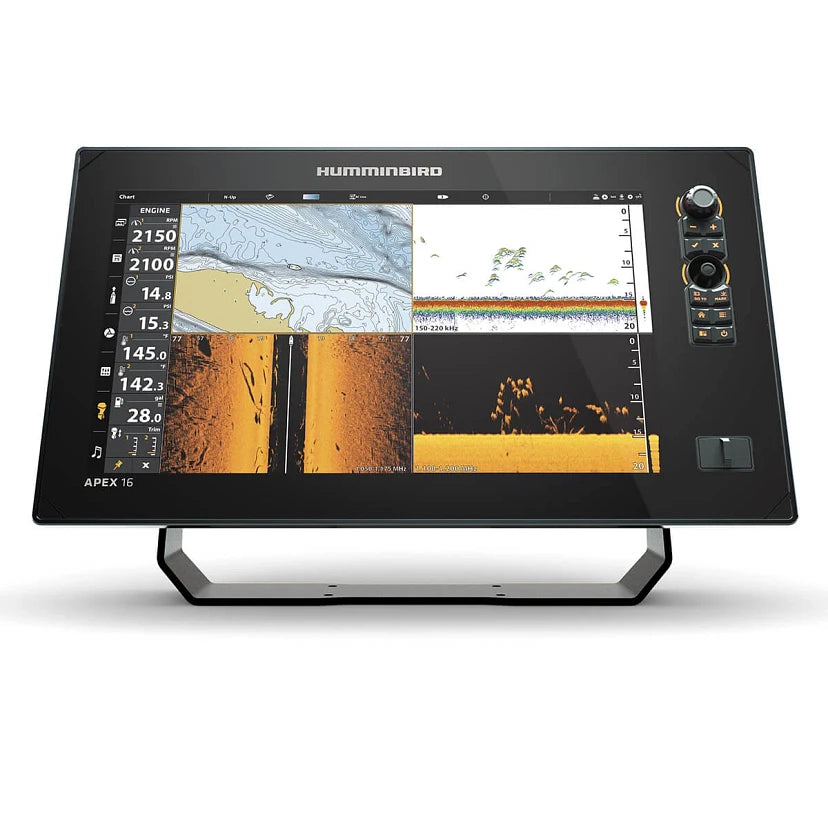

The APEX 16 MEGA SI+ CHARTPLOTTER provides the clearest sonar imaging on the sharpest multi-function display that anglers have ever seen. Industry-leading MEGA Imaging+ and Dual Spectrum CHIRP sonar come standard, with even more performance from a dedicated sonar channel for accessory 2D CHIRP transducers up to 2kW. See it all clearly with a 15.6" Full-HD touchscreen that provides a customized display of information from advanced network options like NMEA 2000®, HDMI In/Out, WiFi and Bluetooth®. Add the power of the One-Boat Network™ to integrate the accuracy of Humminbird GPS charts, unrivaled boat control from Minn Kota®, and reach new depths with wireless Cannon® Optimum™ downrigger control. The APEX Series is a new kind of MFD that will take you fishing to a new level.

<div class="metafield-rich_text_field"><p><strong>Model:</strong> APEX 16 MEGA SI+ CHARTPLOTTER</p><p><strong>Product Code:</strong> 411500-1</p><p><strong>Series:</strong> APEX</p><p><strong>UPC:</strong> 0082324055331</p><p><strong>Display:</strong> • Size: 15.6 in • Pixel Matrix: 1920H x 1080V • Type: Color TFT • Colors Grayscale: 16-Bit</p><p><strong>Dimensions:</strong> • Length: 10.13 in (25.73 cm) • Height: 17.65 in (44.83 cm) • Width: 5.48 in (13.92 cm) • Weight: 10 lb 8 oz (4.76272 kg)</p><p><strong>Transducer:</strong> • Included: XM 14 HW MSI T • Mount Location: Transom</p><p><strong>Compatibility:</strong> Minn Kota US2 Sonar, Minn Kota Built-In MEGA DI, Minn Kota Talon/Raptor, Minn Kota i-Pilot Link, Minn Kota Built-In MEGA SI, HDMI In/Out, MEGA Live, AIS, NMEA 2000, MEGA 360, Radar, AutoPilot, One-Boat Network, MEGA Live 2</p><p><strong>Features:</strong> Touch Screen, MEGA Live Imaging, Networking, Down Imaging, Built In GPS, Side Imaging, Dual Spectrum CHIRP, Built In Mapping, MEGA Imaging+, Wi-Fi</p><p><strong>Memory Card Slot:</strong> Dual Micro SD</p><p><strong>Sonar (Standard):</strong> Dual Spectrum CHIRP, MEGA Side Imaging+, MEGA Down Imaging+</p><p><strong>Sonar Coverage:</strong> 20°, 42°, 60° &amp; (2) 86° @ -10dB</p><p><strong>Sonar (Optional):</strong> 50/83/200 kHz, Airmar High, High Wide, Medium, Medium Wide, and Low</p><p><strong>CHIRP Frequencies Supported:</strong> • Narrow Mode: 180–240 kHz • Optional Deepwater: 28–250 kHz • Wide Mode: 140–200 kHz • Full Mode: 150–220 kHz</p><p><strong>Sonar Frequencies Supported:</strong> 50/83/200/455/800 kHz, HW DSC CHIRP, and MEGA</p><p><strong>Depth (Sonar):</strong> 3,500 ft (optional Airmar CHIRP), 1,200 ft (standard transducer)</p><p><strong>CHIRP Imaging Frequencies Supported:</strong> • MEGA DI+ (1100–1200 kHz) • 800 kHz SI+ (780–840 kHz) • 455 kHz SI+ (405–505 kHz) • 800 kHz DI+ (800–860 kHz) • MEGA SI+ (1050–1175 kHz) • 455 kHz DI+ (420–520 kHz)</p><p><strong>Depth (Down Imaging):</strong> 250 ft (MEGA), 400 ft (455 kHz), 125 ft (800 kHz)</p><p><strong>Range (Side Imaging):</strong> 800 ft (455 kHz), 500 ft (MEGA), 250 ft (800 kHz)</p><p><strong>Interface:</strong> Touch Screen</p><p><strong>Power:</strong> • Draw: 4.3 Amps • Input: 10.8–20 VDC • Output Peak-to-Peak: 8000 Watts • Output RMS: 1000 Watts</p><p><strong>Screen Snapshot:</strong> Included</p><p><strong>Sonar Recording:</strong> Included</p><p><strong>Mount (Standard):</strong> Gimbal • Size: 17.65 in W x 11.05 in H x 4.93 in D</p><p><strong>Mount (Optional):</strong> In-Dash Mounting Kit • Size: 17.65 in W x 10.13 in H x 0.51 in D</p><p><strong>GPS:</strong> • Chartplotting: Included • Receiver: Internal • Trackplotting: Included</p><p><strong>Waypoints, Routes, Tracks/Points:</strong> 10,000, 50, 50/20,000</p><p><strong>Imaging &amp; Compatibility:</strong> • 360 Imaging: Yes • MEGA Live: Yes • Humminbird Basemap: Included</p><p><strong>Map Compatibility:</strong> LakeMaster, CoastMaster, Navionics Gold/HotMaps, Navionics Platinum+, Platinum</p><p><strong>Minn Kota Compatibility:</strong> Advanced GPS Navigation, i-Pilot Link, Talon Shallow Water Anchor</p><p><strong>Radar Compatibility:</strong> Yes</p><p><strong>Ethernet Switch Compatibility:</strong> 5-Port</p><p><strong>AIS Compatibility:</strong> Optional</p><p><strong>Autopilot Compatibility:</strong> Yes</p><p><strong>Heading Sensor GPS Compatibility:</strong> • Standard: Yes • NMEA 2000: Yes</p><p><strong>NMEA2000:</strong> Included</p><p><strong>Target Separation:</strong> 2.5 in</p><p><strong>Software:</strong> Upgradable</p><p><strong>View Preset Keys:</strong> Yes</p><p><strong>X-Press Menu System:</strong> No</p><p><strong>Custom Options:</strong> Digital Readout, View Selections</p><p><strong>Speed:</strong> Included</p><p><strong>Temperature:</strong> • Sensor: Built In • Alarm: Yes • Graph: Yes</p><p><strong>HDMI Compatibility:</strong> Yes</p><p><strong>Warranty:</strong> Two-Year Warranty</p></div>

Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.

We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 14 days of delivery.
