Scanning Sonar Transducer Bundles

Scanning Sonar Transducer Bundles

Regular price $669.99 CAD
Sale price $669.99 CAD Regular price
Unit price
  • SKU:
    010-02536-00
Low stock

- Hurry! Limited stock left.
27 people are viewing this right now
Ask a question

Ask a Question

* Required fields

 Size guide Share
Scanning Sonar Transducer Bundles

Scanning Sonar Transducer Bundles

Product description
Features
Specs
What's In The Box?
Shipping & Return
Product reviews

Perfect for the coastal and offshore fisherman who wants CHIRP traditional sonar and CHIRP ClearVü and CHIRP SideVü scanning sonar, these bundles consistently display clear and crisp fish arches with superior target separation as well as clear definition of objects, structure and fish that pass below and to the side of the boat.

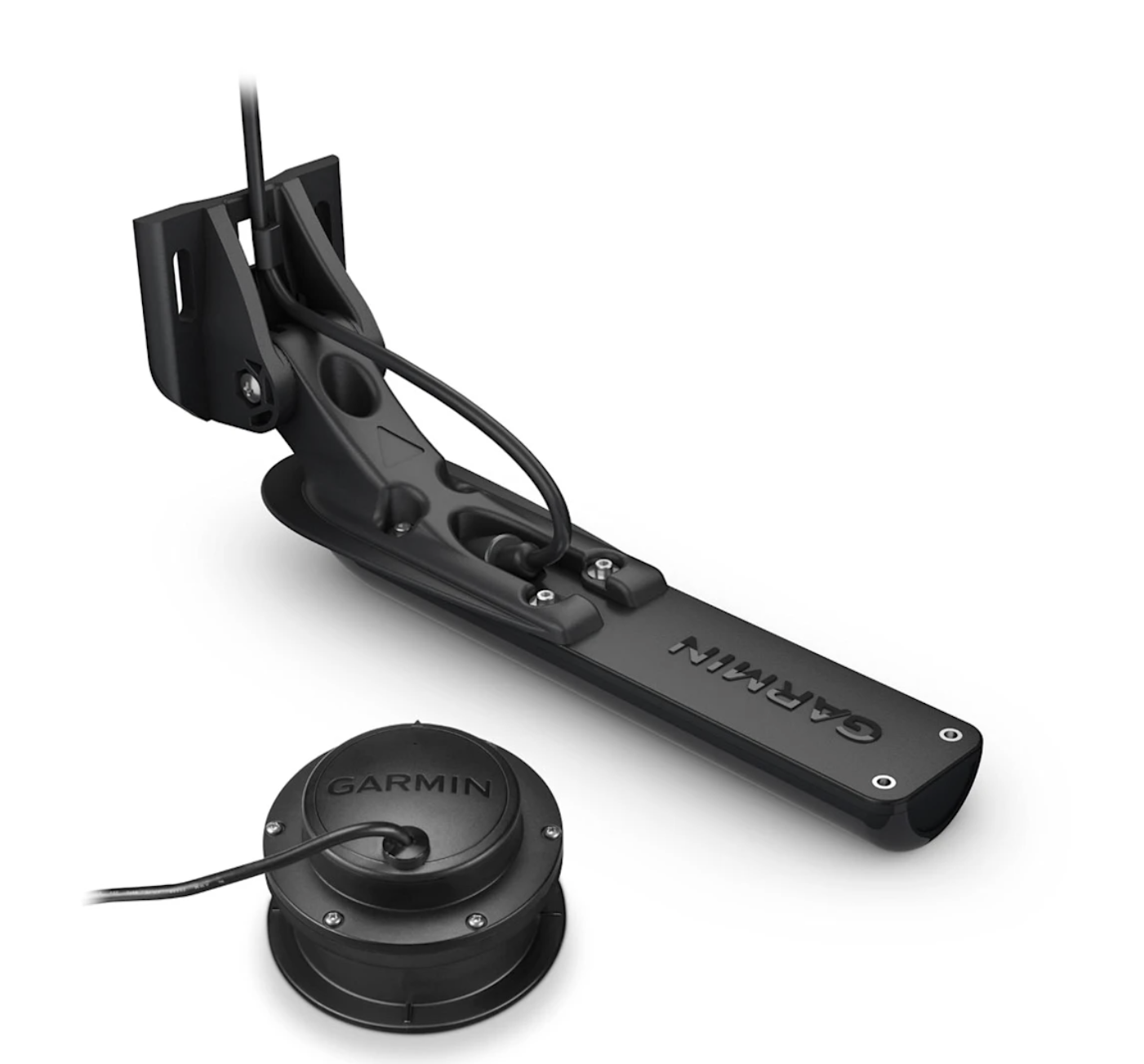

These bundles include the GT36-TM transom mount transducer which offers ultimate versatility, featuring Ultra High-Definition ClearVü and SideVü scanning sonars for crystal-clear images of fish and structure, so you can spend more time catching fish. Both bundles help you maintain accurate depth readings at high speed, are intended for boats with fiberglass hulls, and include the y-cable required for installing both transducers.

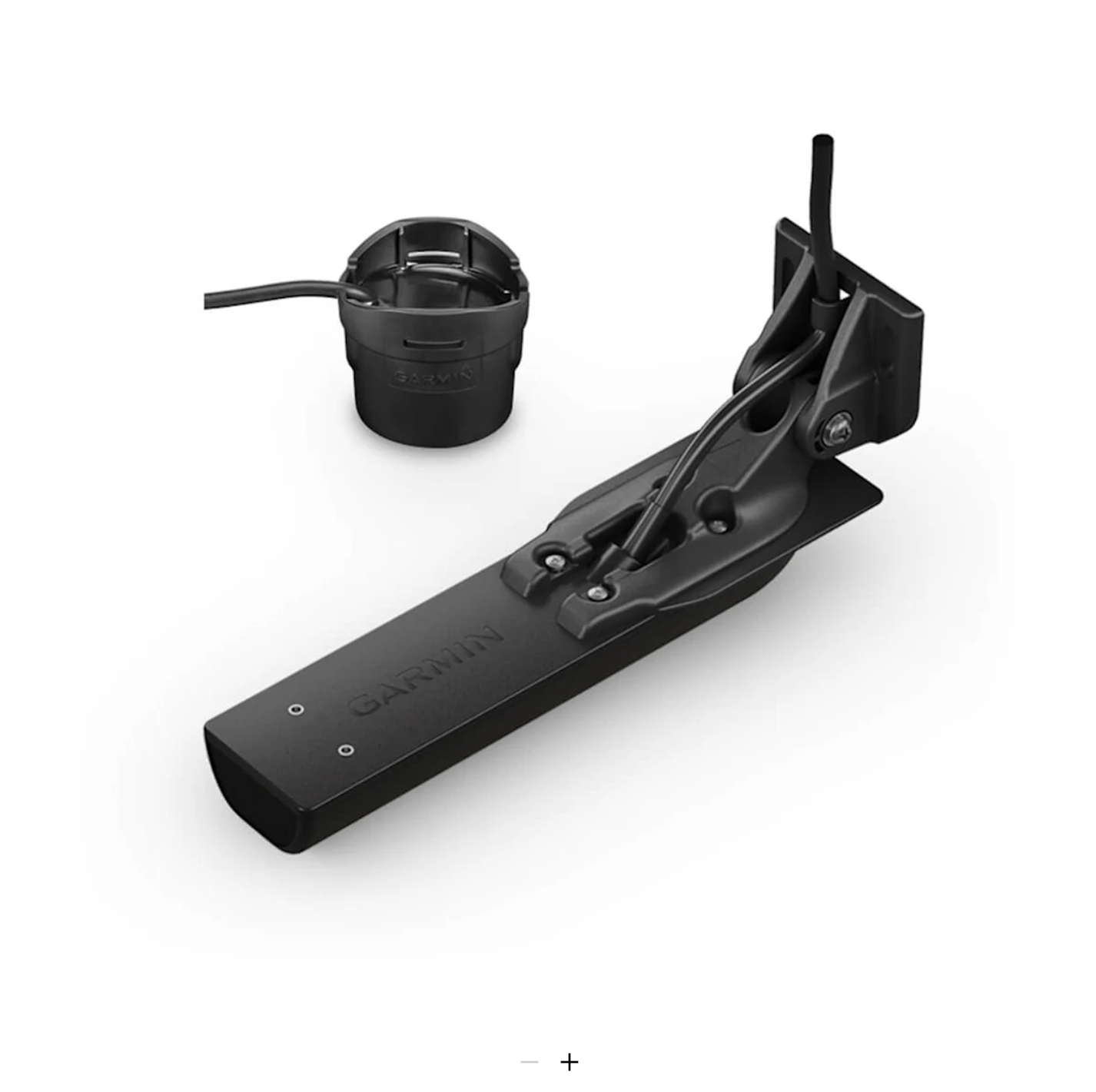

  • Choose the bundle with the GT15M-IH in-hull transducer, featuring mid-band CHIRP traditional sonar, if you have a boat with a fiberglass hull and a deadrise from 0° to 25°

  • Choose the bundle with the GT8HW-IH transducer, featuring high-wide CHIRP traditional sonar, if you have a boat with a fiberglass hull and a deadrise of 0° to 6°
<div class="metafield-rich_text_field"><h3>General</h3><p><strong>Transducer Frequency:</strong> ClearVü / SideVü CHIRP 455 kHz (425–485 kHz), 800 kHz (790–850 kHz), 1000 kHz (940–1100 kHz)</p><p><strong>Transducer Power:</strong> ClearVü / SideVü 500 W</p><p><strong>Transducer Beamwidth:</strong><br /> <br /> ClearVü: 0.52° × 52° @ 1000 kHz; 0.64° × 35° @ 800 kHz; 1.1° × 52° @ 455 kHz<br /> <br /> SideVü: 0.52° × 52° @ 1000 kHz; 0.64° × 35° @ 800 kHz; 1.1° × 52° @ 455 kHz<br /> </p><p><strong>Maximum Depth:</strong> ClearVü: up to 400 ft; SideVü: up to 500 ft</p><p><strong>Transducer Cable Length:</strong> 25 ft</p><p><strong>Depth / Speed / Temperature:</strong> Depth and Temperature</p><p><strong>Transducer Number of Pins:</strong> 12-pin</p><p><strong>Supported Deadrise / Transom Angles:</strong> 0°–70° transom</p><h3>Transducer Support</h3><p><strong>Supported Frequency:</strong> ClearVü / SideVü CHIRP 455 kHz (425–485 kHz), 800 kHz (790–850 kHz), 1000 kHz (940–1100 kHz)</p><p><strong>GT36-TM Transducer Dimensions (without mount):</strong> 218.5 mm × 51.8 mm × 27.7 mm</p><p><strong>Additional Supported Transducers:</strong> GT8HW-IH, GT15M-IH (bundle dependent)</p></div>
<div class="metafield-rich_text_field"><p><strong>GT36-TM Transducer Bundle (Includes GT8HW-IH Transducer)</strong></p><ul><li>GT36UHD-TM transducer with 12-pin connector25 ft transducer cableTransom mountTrolling motor mountMounting hardwareDocumentation</li><li>GT8HW-IH transducer with 8-pin connector20 ft transducer cableIn-hull fittingDocumentation</li><li>Y-cable (12-pin and 8-pin transducer to 12-pin sounder adapter cable)</li></ul><p><strong>GT36-TM Transducer Bundle (Includes GT15M-IH Transducer)</strong></p><ul><li>GT36UHD-TM transducer with 12-pin connector25 ft transducer cableTransom mountTrolling motor mountMounting hardwareDocumentation</li><li>GT15M-IH transducer with 8-pin connector20 ft transducer cable4 plastic in-hull tanksDocumentation</li><li>Y-cable (12-pin and 8-pin transducer to 12-pin sounder adapter cable)</li></ul></div>

Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.

We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 14 days of delivery.
