Product description
Features
Specs
What's In The Box?
Shipping & Return
Product reviews

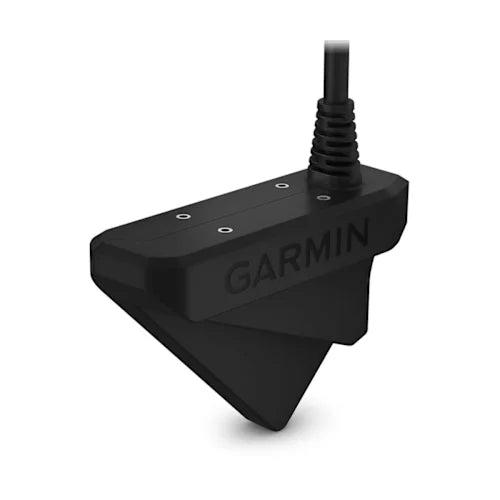

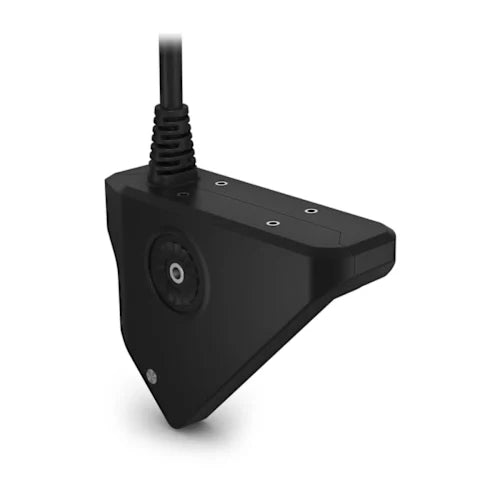

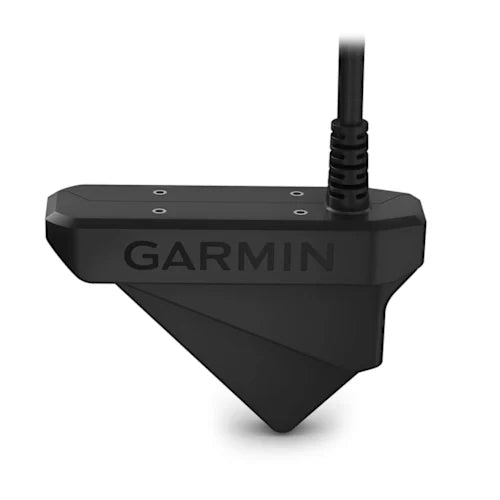

Drill fewer holes and catch more fish with the Panoptix LVS32-IF ice fishing transducer. Pair it with your compatible Garmin chartplotter via your GLS 10 sonar black box to see live, easy-to-interpret scanning sonar images in incredible detail below the ice, including revolutionary LiveScope™ Forward and LiveScope™ Down modes. You’ll not only see crystal-clear imagery below your hole, but you can also see up to 200’ in both modes.

<div class="metafield-rich_text_field"><h3>General</h3><p><strong>Transducer Beamwidth:</strong> 20° × 135°</p><p><strong>Transducer Cable Length:</strong> 20 ft</p><p><strong>Transducer Number of Pins:</strong> 21</p><p><strong>Dimensions:</strong> 5.4&quot; × 3.8&quot; × 1.8&quot; (13.7 × 9.7 × 4.6 cm)</p><p><strong>Weight:</strong> 1.9 lbs (0.9 kg)</p><p><strong>Operating Temperature Range:</strong> 0°C to 40°C</p><h3>Electrical Features</h3><p><strong>Power Input:</strong> 10–32 V</p><p><strong>Power Usage:</strong> 21 W typical • 58 W max</p><p><strong>Fuse:</strong> 7.5 A</p><h3>Sonar Features</h3><p><strong>Frequency:</strong> 530–1,100 kHz</p><p><strong>Transmit Power:</strong> 500 W</p><p><strong>Maximum Depth:</strong> Down &amp; Forward: 200 ft (61.0 m)</p><p><strong>Sonar Type:</strong> Live</p><p><strong>Target Separation @ 100 ft:</strong> 22&quot;</p><h3>Connections</h3><p><strong>Garmin Marine Network Ports:</strong> 1 (small connector)</p><h3>Sonar Modes</h3><p>LiveVü Down</p><p>LiveVü Forward</p><p>Perspective Mode</p><p>Traditional Sonar Source</p></div>
<div class="metafield-rich_text_field"><ul><li>LiveScope LVS32-IF</li><li>0 degree LiveScope pole mount</li><li>Documentation</li></ul></div>
