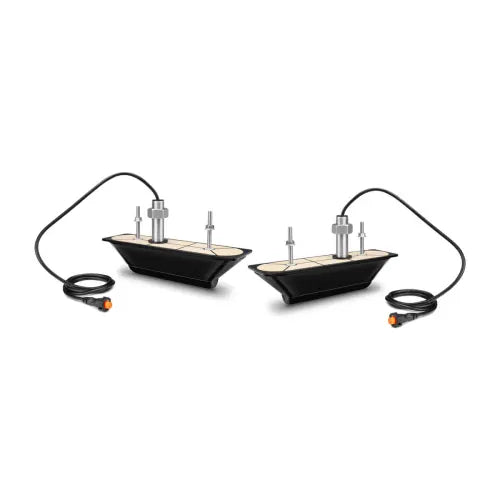

Perfect for the shallow water fisherman who want CHIRP ClearVü and CHIRP SideVü scanning sonar with stainless steel stems, this pair of 12-pin thru-hull transducers consistently displays clear definition of objects, structure and fish below and to each side of the boat.

These transducers with built-in fast response temperature sensors have a power rating of 500 W per element (1,500 W total); a depth of 750 ft (ClearVü) and 500 ft left and right (SideVü); an operating frequency of CHIRP 455/800 kHz¹; for hull deadrises from 5 degrees to 25 degrees. Pair them with your GCV™ 10 scanning sonar module.

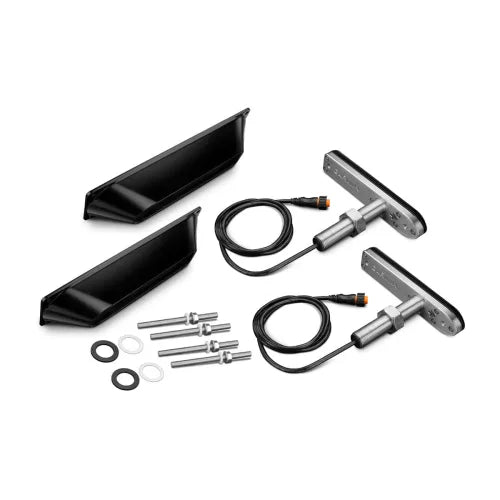

Includes 12-pin port and starboard transducers with stainless steel stems, isolation bushings, fairing blocks, Y-cable, mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat.

¹CHIRP frequency bandwidth is 445 to 475 kHz and 805 to 840 kHz.

<div class="metafield-rich_text_field"><h3>General</h3><p><strong>Transducer Frequency:</strong><br /> <br /> ClearVü / SideVü CHIRP 455 kHz (425–485 kHz)<br /> <br /> ClearVü / SideVü CHIRP 800 kHz (790–850 kHz)<br /> </p><p><strong>Transducer Power:</strong> ClearVü / SideVü 500 W</p><p><strong>Transducer Beamwidth:</strong><br /> <br /> ClearVü: 1.4° × 53° @ 455 kHz and 0.8° × 30° @ 800 kHz<br /> <br /> SideVü: 1.1° × 53° @ 455 kHz and 0.7° × 30° @ 800 kHz<br /> </p><p><strong>Maximum Depth:</strong><br /> <br /> ClearVü: 750 ft<br /> <br /> SideVü: 500 ft<br /> </p><p><strong>Transducer Cable Length:</strong> 5 ft + 30 ft Y-extension cable</p><p><strong>Depth / Speed / Temperature:</strong> Depth and Temperature</p><p><strong>Transducer Pins:</strong> 12-pin</p><p><strong>Supported Deadrise / Transom Angles:</strong> Up to 25° deadrise</p><h3>Transducer Support</h3><p><strong>Supported Frequencies:</strong><br /> <br /> ClearVü / SideVü CHIRP 455 kHz (425–485 kHz)<br /> <br /> ClearVü / SideVü CHIRP 800 kHz (790–850 kHz)<br /> </p></div>
