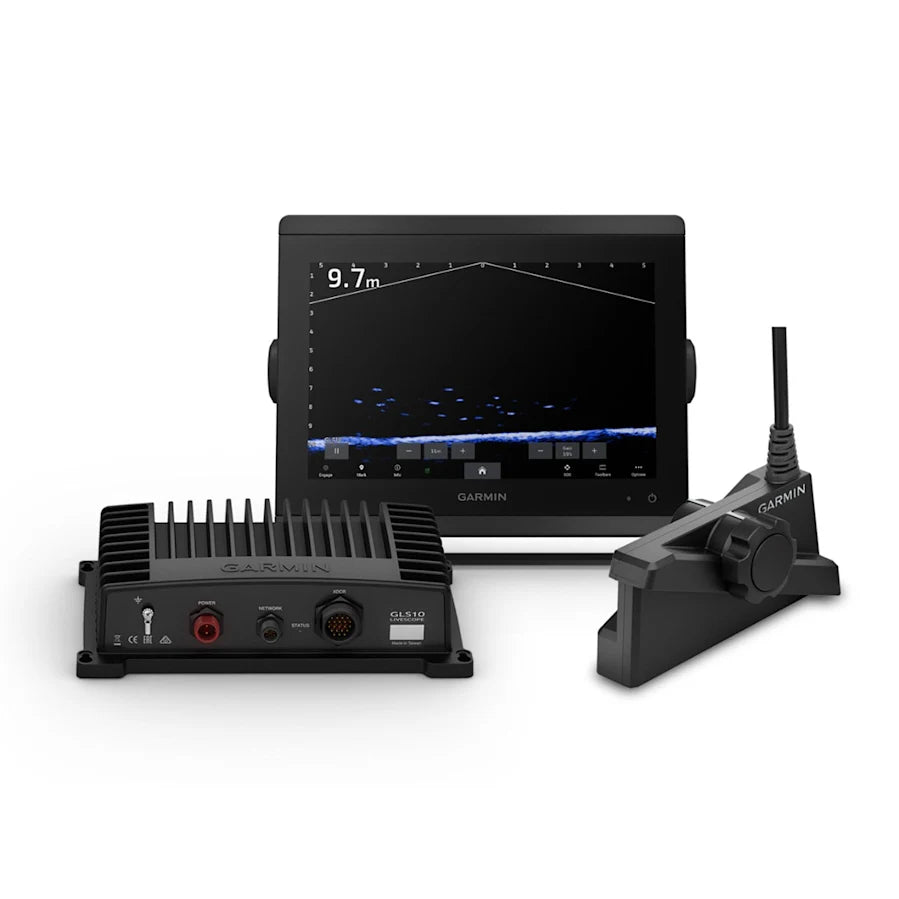

GPSMAP® Ice House System Includes GPSMAP® 8610xsv Chartplotter and LiveScope™ Plus System

General

Dimensions: 10.25" x 8.0625" x 2.95" (25.9 cm x 20.5 cm x 7.5 cm)

Weight: 15.4 lbs (7.0 kg)

Water Rating: IPX7

Touchscreen: Yes

Display Type: WUXGA, IPS

Display Size: 8.6" x 5.4"; 10.1" Diagonal (21.8 cm x 13.7 cm; 25.7 cm Diagonal)

Display Resolution: 1920 x 1200 Pixels

Input: Touchscreen

Maps & Memory

Accepts Data Cards: 2 microSD™ Cards

Waypoints: 5000

Track Points: 50,000

Tracks: 50 Saved Tracks

Navigation Routes: 100

Ice Fishing Details

Bag Size: None

Included Transducer: LiveScope™ Plus System with LVS34-IF

Transducer Holding Feature: Pole Mount

Sensors

GPS: Yes

GLONASS: Yes

Galileo: Yes

Built-In Receiver: Yes

Receiver: 10 Hz

NMEA 2000 Compatible: Yes

Supports WAAS: Yes

Built-In Maps

Built-In Auto Guidance+: Yes

Optional Map Support

BlueChart g3: Yes

BlueChart g3 Vision: Yes

LakeVü g3: Yes

LakeVü g3 Ultra: Yes

Garmin Navionics+™: Yes

Garmin Navionics Vision+™: Yes

TOPO 100K: Yes

Standard Mapping: Yes

Garmin Quickdraw Contours: Yes

Raster Chart Support: Yes

Chartplotter Features

ActiveCaptain® Compatible: Yes

Supports Voice Commands: Yes

Electrical Features

Power Input: 10 to 32 Vdc

Sonar Features

Displays Sonar: Yes

Power Output: 1 kW

Traditional Sonar (Dual Frequency/Beam): Built-In (Dual Channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)

ClearVü: Built-In 260/455/800/1000/1200 kHz

SideVü: Built-In 260/455/800/1000/1200 kHz

Panoptix™ Sonar: Yes

LiveScope: Yes

Connections

NMEA 2000® Ports: 1

Video Input Ports: • 1 (BNC Composite) • 1 HDMI (HDCP Compliant)

Video Output Ports: 1 HDMI

Garmin Marine Network Ports: 2

8-Pin Transducer Ports: Yes

12-Pin Transducer Ports: Yes

Bluetooth® Pairing: Yes

ANT® (Connectivity): Yes

Garmin Wi-Fi Network (Local Connection): Yes

• GPSMAP 8610xsv with preloaded Garmin Navionics+™ Coastal Charts and Inland Mapping for U.S. or Canada
• LiveScope Plus LVS34-IF transducer
• GLS™ 10 black box sonar module with power and network cables
• Ice fishing pole mount
• Documentation
