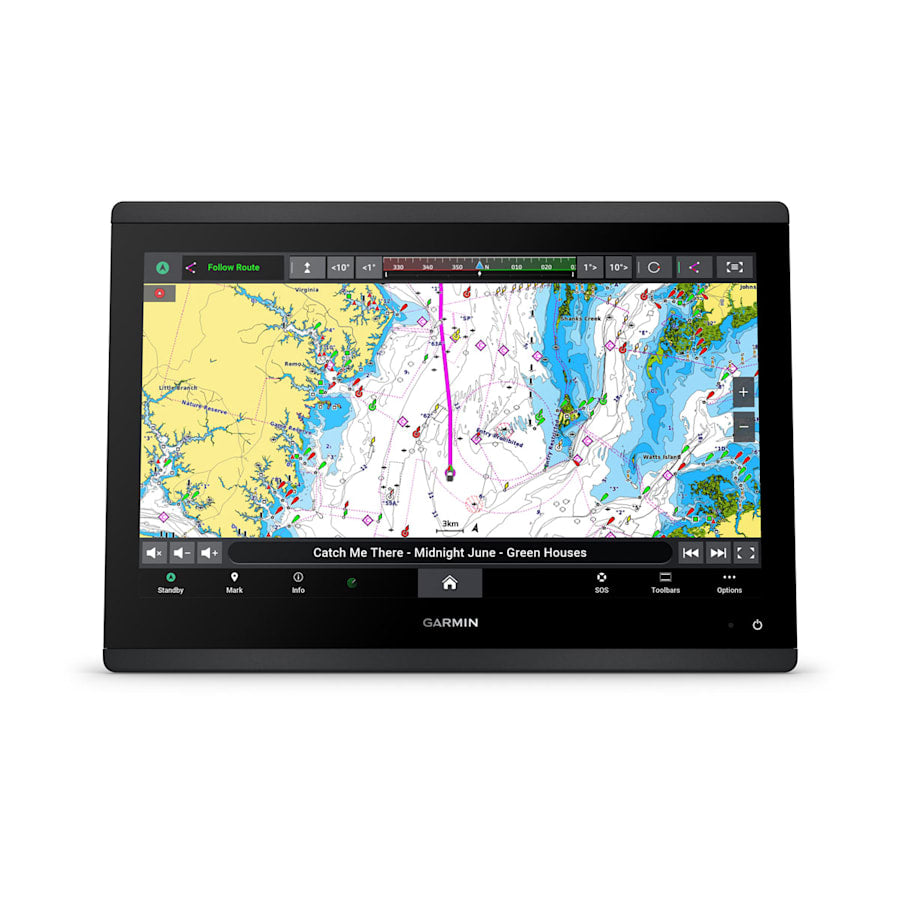

Garmin GPSMAP® 1643xsv SideVü, ClearVü and Traditional CHIRP Sonar with Mapping

GPSMAP® 1600 Chartplotters

Product description
Features
Specs
What's In The Box?
Shipping & Return
Product reviews

[youtube id="VgbwdE4V-sE"]


GET A SHARPER VIEW FROM YOUR CONNECTED HELM

  • With its sleek design, powerful processing and upgraded IPS display, this advanced 7”, 9”, 12” or 16” chartplotter integrates seamlessly into your Garmin marine system.
  • Easily integrate with more engines.

  • Connect to compatible third-party devices with digital switching and OneHelm integrations.

  • Easily build your marine system by using our advanced network connectivity.

  • Navigate any waters with preloaded Garmin Navionics+ charts on select models.

  • See below your boat with built-in sonar capabilities on select models.

  • Manage your marine experience from nearly anywhere1.



<div class="metafield-rich_text_field"><h3>General</h3><p><strong>Dimensions:</strong> 15.1” x 10.3” x 3.0” (38.4 x 26.2 x 7.6 cm)</p><p><strong>Weight:</strong> 9.7 lbs (4.4 kg)</p><p><strong>Water Rating:</strong> IPX7</p><h3>Display</h3><p>• Type: FHD, IPS<br /> <br /> • Size: 13.6&quot; x 7.7&quot;; 15.6&quot; diagonal (34.5 cm x 19.5 cm; 39.7 cm diagonal)<br /> <br /> • Resolution: 1920 x 1080 pixels<br /> <br /> • Mounting Options: Bail, flush or flat (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge are required.)<br /> <br /> • Input: Touchscreen</p><h3>Maps &amp; Memory</h3><p>• Accepts Data Cards: 2 microSD cards (back of device)<br /> <br /> • Waypoints: 5000<br /> <br /> • Track Points: 50,000<br /> <br /> • Tracks: 50 saved tracks<br /> <br /> • Navigation Routes: 100</p><h3>Sensors</h3><p>• GPS<br /> <br /> • GLONASS<br /> <br /> • Galileo<br /> <br /> • Built-in Receiver: 10 Hz<br /> <br /> • NMEA 2000 Compatible<br /> <br /> • NMEA 0183 Compatible<br /> <br /> • Supports WAAS</p><h3>Built-in Maps</h3><p>• Built-in Auto Guidance+<br /> <br /> • Garmin Navionics+ Inland &amp; Coastal<br /> <br /> • Tide Tables</p><h3>Optional Map Support</h3><p>• Garmin Navionics+™<br /> <br /> • Garmin Navionics Vision+™<br /> <br /> • TOPO 100K<br /> <br /> • Standard Mapping<br /> <br /> • Garmin Quickdraw Contours<br /> <br /> • Raster Chart Support</p><h3>Chartplotter Features</h3><p>• Smart Mode Compatible<br /> <br /> • AIS<br /> <br /> • DSC<br /> <br /> • Supports Fusion-Link™ Compatible Radios<br /> <br /> • GSD Black Box Sonar Support<br /> <br /> • GCV Black Box Sonar Support<br /> <br /> • ActiveCaptain® Compatible<br /> <br /> • GRID (Garmin Remote Input Device) Compatible<br /> <br /> • Wireless Remote Compatible<br /> <br /> • Sailing Features<br /> <br /> • Spoken Audio Alerts<br /> <br /> • OneHelm Support</p><h3>Electrical Features</h3><p>• Power Input: 10 to 32 Vdc<br /> <br /> • Typical Current Draw at 12 Vdc: 3.61 A<br /> <br /> • Maximum Current Draw at 12 Vdc: 6.07 A<br /> <br /> • Maximum Power Usage at 10 Vdc: 74.75 W</p><h3>Sonar Features</h3><p>• Displays Sonar<br /> <br /> • Power Output: 1 kW<br /> <br /> • Traditional Sonar (dual frequency/beam): Built-in (single channel CHIRP, 50/70/83/200 kHz, L, M, H CHIRP)<br /> <br /> • ClearVü: Built-in 260/455/800/1000/1200 kHz<br /> <br /> • SideVü: Built-in 260/455/800/1000/1200 kHz</p><h3>Connections</h3><p>• NMEA 2000® Ports: 1<br /> <br /> • NMEA 0183 Input (Rx) Ports: 1<br /> <br /> • NMEA 0183 Output (Tx) Ports: 1<br /> <br /> • Video Input Ports: 1 (BNC composite)<br /> <br /> • Video Output Ports: 1 HDMI<br /> <br /> • J1939 Ports: 1<br /> <br /> • Garmin Marine Network Ports: 2<br /> <br /> • 12-pin Transducer Ports: 1<br /> <br /> • USB Ports<br /> <br /> • Bluetooth® Pairing<br /> <br /> • ANT® (Connectivity)<br /> <br /> • Garmin Wi-Fi Network (Local Connection)</p></div>
<div class="metafield-rich_text_field"><ul><li>GPSMAP 1643xsv chartplotter</li><li>microSD™ card preinstalled</li><li>8-pin transducer to 12-pin sounder adapter cable</li><li>Power cable</li><li>Flush mount kit with gasket</li><li>Protective cover</li><li>Trim piece snap covers</li><li>Backbone/drop cable (2 meters) and T-connector for the NMEA 2000® network</li><li>Documentation</li></ul></div>
