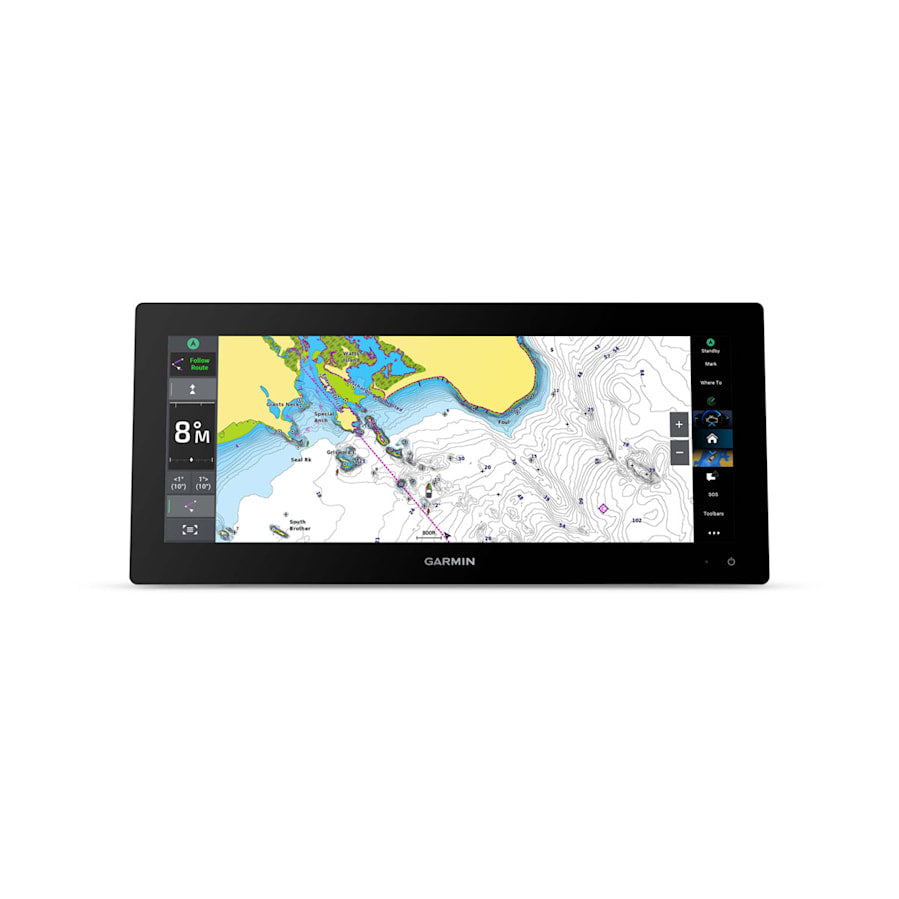

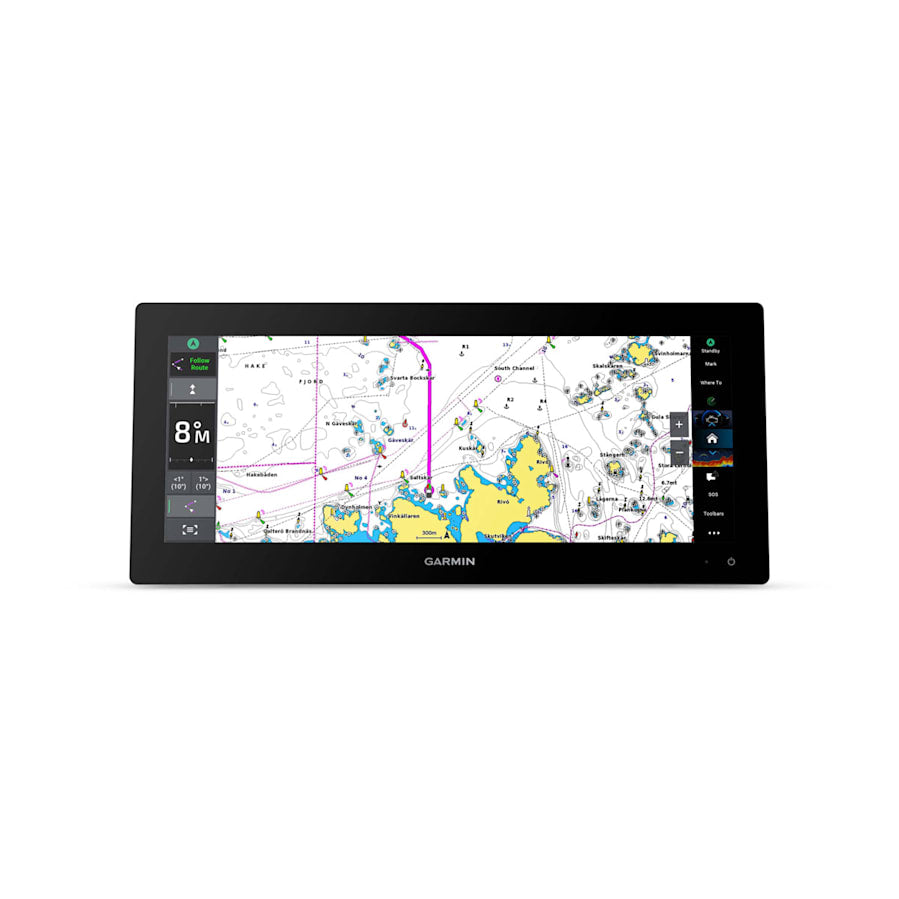

Garmin GPSMAP® 1543xsv SideVü, ClearVü and Traditional CHIRP Sonar with Mapping

GPSMAP® 1500 Chartplotters

Product description
Features
Specs
What's In The Box?
Shipping & Return
Product reviews

[youtube id="jG_7pxGWQqs "]



WIDEN YOUR HORIZONS



  • Offering a sleek aesthetic in an ultrawide edge-to-edge glass format, this advanced 15-inch chartplotter clearly expands your perspective at the helm. It is 74% wider and boasts more pixels than a standard 9-inch chartplotter, providing enhanced viewing clarity.

  • ULTRAWIDE IN-PLANE SWITCHING (IPS) 15-INCH DISPLAY FITS A VARIETY OF HELM LAYOUTS, INCLUDING “FLOATING DISPLAY” CONFIGURATIONS

  • CONNECT TO COMPATIBLE THIRD-PARTY DEVICES WITH DIGITAL SWITCHING AND ONEHELM™ INTEGRATIONS

  • EASILY BUILD YOUR MARINE SYSTEM BY USING OUR ADVANCED NETWORK CONNECTIVITY

  • NAVIGATE WATERS CONFIDENTLY WITH PRELOADED GARMIN NAVIONICS+™ CHARTS ON SELECT MODELS

  • SEE BELOW YOUR BOAT WITH BUILT-IN SONAR CAPABILITIES

  • MANAGE YOUR MARINE EXPERIENCE FROM NEARLY ANYWHERE
<div class="metafield-rich_text_field"><h3>General</h3><p><strong>Dimensions:</strong> 15.3&quot; x 7.02&quot; x 3.3&quot; (388.9 x 178.5 x 82.9 mm)</p><p><strong>Weight:</strong> 7.2 lbs (3.26 kg)</p><p><strong>Water Rating:</strong> IPX7</p><h3>Display</h3><p>• Type: Ultrawide display, IPS<br /> <br /> • Size: 13.6&quot; x 5.1&quot;; 14.5&quot; diagonal (34.6 x 12.9 cm; 36.8 cm diagonal)<br /> <br /> • Resolution: 1920 x 720 pixels<br /> <br /> • Mounting Options: Bail, flush or flat (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge are required.)</p><h3>Maps &amp; Memory</h3><p>• Accepts Data Cards: 2 microSD™ cards (back of device)<br /> <br /> • Compatible with Garmin SD Card Reader: Yes (USB card reader)<br /> <br /> • Waypoints: 5000<br /> <br /> • Track Points: 50,000<br /> <br /> • Tracks: 50 saved tracks<br /> <br /> • Navigation Routes: 100</p><h3>Sensors</h3><p>• GPS<br /> <br /> • GLONASS<br /> <br /> • Galileo<br /> <br /> • Built-in Receiver: 10 Hz<br /> <br /> • NMEA 2000 Compatible<br /> <br /> • NMEA 0183 Compatible<br /> <br /> • Supports WAAS<br /> <br /> • Supports Multi-band, Multi-constellation GPS: Yes (with external GPS antenna)</p><h3>Built-in Maps</h3><p>• Built-in Auto Guidance+<br /> <br /> • Garmin Navionics+ Inland &amp; Coastal<br /> <br /> • Tide Tables</p><h3>Optional Map Support</h3><p>• BlueChart g3<br /> <br /> • BlueChart g3 Vision<br /> <br /> • LakeVü g3<br /> <br /> • LakeVü g3 Ultra<br /> <br /> • Garmin Navionics+™<br /> <br /> • Garmin Navionics Vision+™<br /> <br /> • TOPO 100K<br /> <br /> • Standard Mapping<br /> <br /> • Garmin Quickdraw Contours<br /> <br /> • Raster Chart Support</p><h3>Chartplotter Features</h3><p>• Smart Mode Compatible<br /> <br /> • AIS<br /> <br /> • DSC<br /> <br /> • Supports Fusion-Link™ Compatible Radios<br /> <br /> • GSD Black Box Sonar Support<br /> <br /> • GCV Black Box Sonar Support<br /> <br /> • ActiveCaptain® Compatible<br /> <br /> • Supports Voice Commands: Yes (with external accessory)<br /> <br /> • GRID (Garmin Remote Input Device) Compatible<br /> <br /> • Wireless Remote Compatible<br /> <br /> • Sailing Features<br /> <br /> • Spoken Audio Alerts<br /> <br /> • OneHelm Support</p><h3>Electrical Features</h3><p>• Power Input: 10 to 32 Vdc<br /> <br /> • Typical Current Draw at 12 Vdc: 2.44 A<br /> <br /> • Maximum Current Draw at 12 Vdc: 4.21 A<br /> <br /> • Maximum Power Usage at 10 Vdc: 56.93 W</p><h3>Sonar Features</h3><p>• Displays Sonar<br /> <br /> • Power Output: 1 kW<br /> <br /> • SideVü: Built-in 260/455/800/1000/1200 kHz</p><h3>Connections</h3><p>• NMEA 2000® Ports: 1<br /> <br /> • NMEA 0183 Input (Rx) Ports: 1<br /> <br /> • NMEA 0183 Output (Tx) Ports: 1<br /> <br /> • Video Input Ports: 1 (BNC composite)<br /> <br /> • J1939 Ports: 1<br /> <br /> • Garmin Marine Network Ports: 2<br /> <br /> • 12-pin Transducer Ports: 1<br /> <br /> • USB Ports<br /> <br /> • Bluetooth® Pairing: Yes (BLE)<br /> <br /> • ANT® (Connectivity)<br /> <br /> • Garmin Wi-Fi Network (Local Connection)</p></div>
<div class="metafield-rich_text_field"><ul><li>GPSMAP 1543xsv ultrawide chartplotter</li><li>microSD™ card preinstalled</li><li>Power cable</li><li>Thin flush mount kit with gasket</li><li>Protective cover</li><li>8-pin transducer to 12-pin sounder adapter cable</li><li>2 m backbone/drop cable and T-connector for NMEA 2000® Network</li><li>Documentation</li></ul></div>
