ECHOMAP™ Ultra 2 12" Chartplotters

Regular price $4,499.99 CAD
Sale price $4,499.99 CAD Regular price
Unit price
  • SKU:
    010-02881-01
Low stock

- Hurry! Limited stock left.

24 people are viewing this right now
Ask a question

Ask a Question

* Required fields

Size guide Share

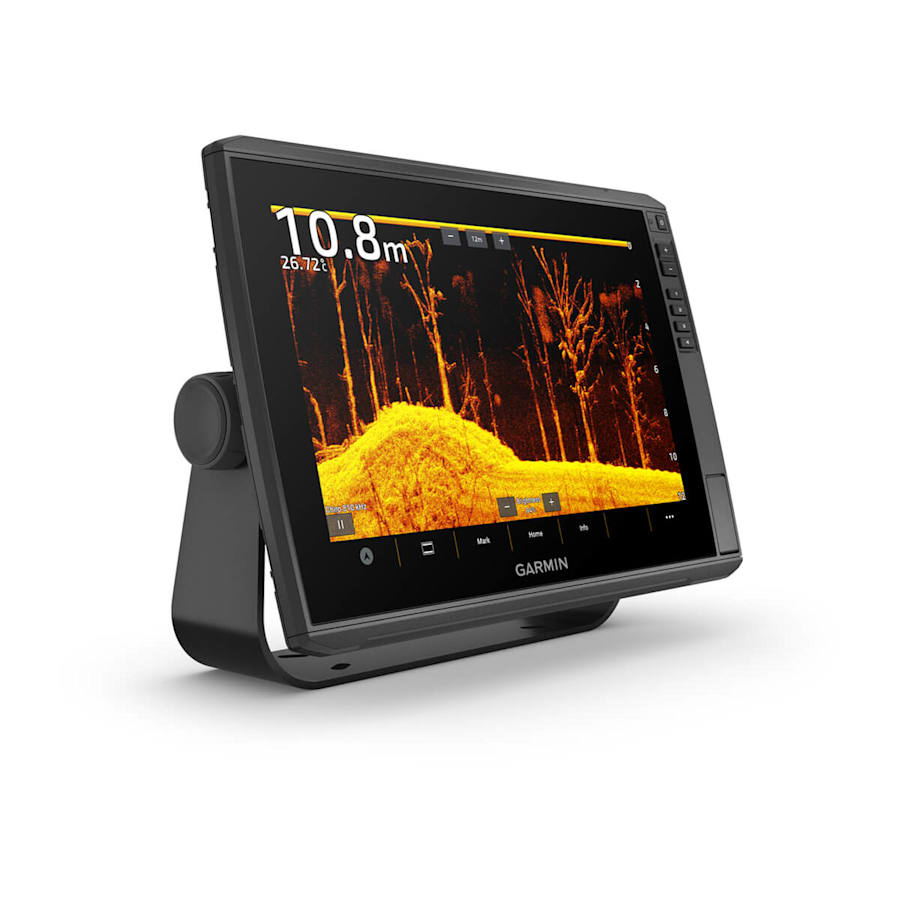

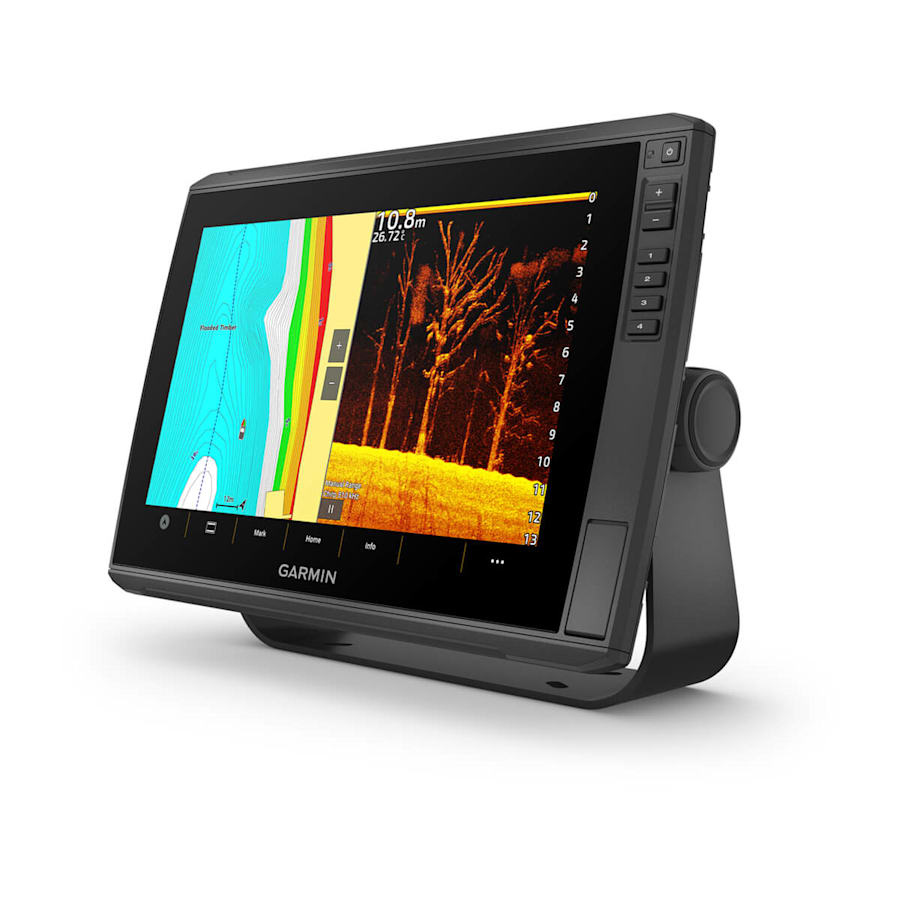

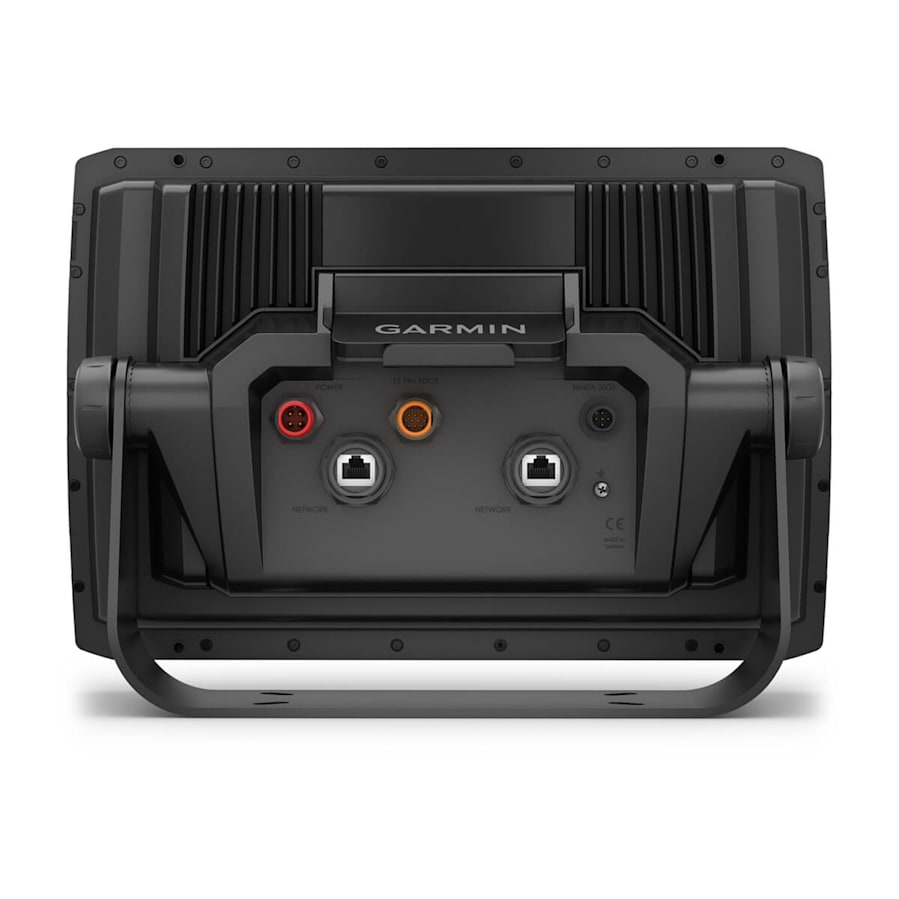

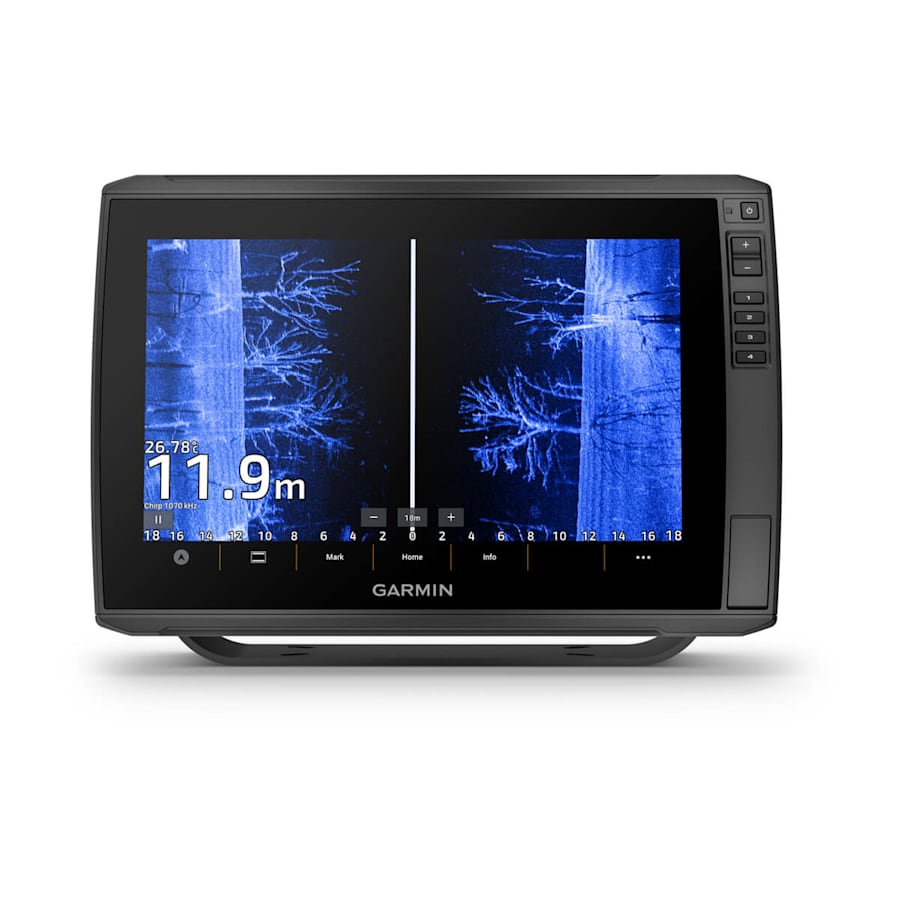

Garmin ECHOMAP™ Ultra 2 12" Chartplotters 122sv with GT56UHD-TM Transducer; includes Worldwide Basemap

ECHOMAP™ Ultra 2 12" Chartplotters

Product description
Features
Specs
What's In The Box?
Shipping & Return
Product reviews

[youtube id="f7atvq-_6lI"]

ALL THE TOOLS YOU NEED FOR SUCCESSFUL FISHING

With big, crisp, sunlight-readable touchscreen displays, these versatile chartplotters put a world of fishfinding capability at your fingertips. They’re available with built-in Garmin Navionics+ mapping, and the transducer bundle adds Ultra High-Definition scanning sonars as well as CHIRP traditional sonar.

  • 10” OR 12” TOUCHSCREENS
  • SUPPORTS LIVESCOPE SONAR AND MORE
  • AVAILABLE WITH BUILT-IN GARMIN NAVIONICS+ MAPPING
  • WIRELESSLY NETWORK; SHARE SONAR, WAYPOINTS AND ROUTES
  • CAPTURE SCREEN RECORDINGS TO SHARE FISH CATCHES
  • MULTI-BAND GPS FOR IMPROVED POSITION ACCURACY
<div class="metafield-rich_text_field"><h3>General</h3><p><strong>Dimensions:</strong> 13.4&quot; x 9.0&quot; x 3.9&quot; (34.1 x 22.9 x 9.8 cm)</p><p><strong>Weight:</strong> 5.5 lbs (2.5 kg)</p><p><strong>Water Rating:</strong> IPX7</p><h3>Touchscreen</h3><p><strong>Display Type:</strong> WXGA, IPS</p><p><strong>Display Size:</strong> 10.3&quot; x 6.4&quot;; 12.1&quot; diagonal (26.1 x 16.3 cm; 30.7 cm diagonal)</p><p><strong>Display Resolution:</strong> 1280 x 800 pixels</p><p><strong>Mounting Options:</strong> Bail or flush</p><p><strong>Input:</strong> Touchscreen with Keyed Assist</p><h3>Maps &amp; Memory</h3><p><strong>Accepts Data Cards:</strong> 2 microSD cards</p><p><strong>Waypoints:</strong> 5,000</p><p><strong>Track Points:</strong> 50,000</p><p><strong>Tracks:</strong> 50 saved tracks</p><p><strong>Navigation Routes:</strong> 100</p><h3>Sensors</h3><p><strong>Included Sensors:</strong></p><p>• GPS<br /> <br /> • GLONASS<br /> <br /> • Galileo<br /> <br /> • BeiDou</p><p><strong>Has Built-in Receiver:</strong> Yes</p><p><strong>Receiver:</strong> 10 Hz</p><p><strong>NMEA 2000 Compatible:</strong> Yes</p><p><strong>Supports WAAS:</strong> Yes</p><p><strong>Supports Multi-band, Multi-constellation GPS:</strong> Yes</p><h3>Optional Map Support</h3><p><strong>Supported Maps:</strong></p><p>• BlueChart g3<br /> <br /> • BlueChart g3 Vision<br /> <br /> • Garmin Navionics+™<br /> <br /> • Garmin Navionics Vision+™<br /> <br /> • TOPO 100K<br /> <br /> • Standard Mapping<br /> <br /> • Garmin Quickdraw Contours</p><h3>Chartplotter Features</h3><p><strong>Included Features:</strong></p><p>• AIS<br /> <br /> • DSC<br /> <br /> • Supports Fusion-Link™ compatible radios<br /> <br /> • ActiveCaptain® compatible: Yes<br /> <br /> • Sailing Features</p><h3>Electrical Features</h3><p><strong>Power Input:</strong> 9 to 18 Vdc</p><p><strong>Typical Current Draw at 12 Vdc:</strong> 2.5 A</p><p><strong>Maximum Current Draw at 12 Vdc:</strong> 5.0 A</p><p><strong>Maximum Power Usage at 10 Vdc:</strong> 36 W</p><h3>Sonar Features</h3><p><strong>Displays Sonar:</strong> Yes</p><p><strong>Power Output:</strong> 600 W</p><p><strong>Traditional Sonar (dual frequency/beam):</strong> Built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)</p><p><strong>ClearVü:</strong> Built-in 260/455/800/1000/1200 kHz</p><p><strong>SideVü:</strong> Built-in 260/455/800/1000/1200 kHz</p><p><strong>Panoptix™ Sonar:</strong> No</p><p><strong>LiveScope:</strong> No</p><h3>Connections</h3><p><strong>Connection Options:</strong></p><p>• NMEA 2000® Ports: 1<br /> <br /> • Garmin Marine Network Ports: 2 (large connector)<br /> <br /> • 12-pin Transducer Ports: 12-pin scanning sonar<br /> <br /> • ANT® Connectivity<br /> <br /> • Garmin Wi-Fi Network (Local Connection)</p></div>
<div class="metafield-rich_text_field"><h3>With Transducer</h3><ul><li>ECHOMAP Ultra 122sv or 126sv (depending on the version selected) with optional Garmin Navionics+ </li><li>GT56UHD-TM transducer</li><li>Power cable</li><li>Bail mount with quick release cradle</li><li>Protective sun cover</li><li>Hardware</li><li>Documentation</li></ul><h3>Without Transducer</h3><ul><li>ECHOMAP Ultra 122sv or 126sv (depending on the version selected) with optional Garmin Navionics+ </li><li>Power cable</li><li>Bail mount with quick release cradle</li><li>Protective sun cover</li><li>8-pin transducer to 12-pin sounder adapter cable</li><li>Hardware</li><li>Documentation</li></ul></div>

Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.

We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 14 days of delivery.
