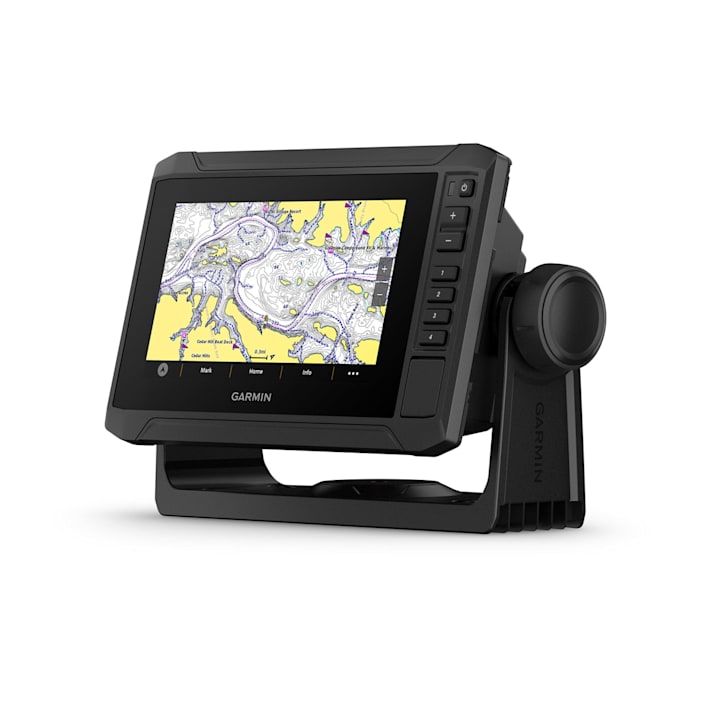

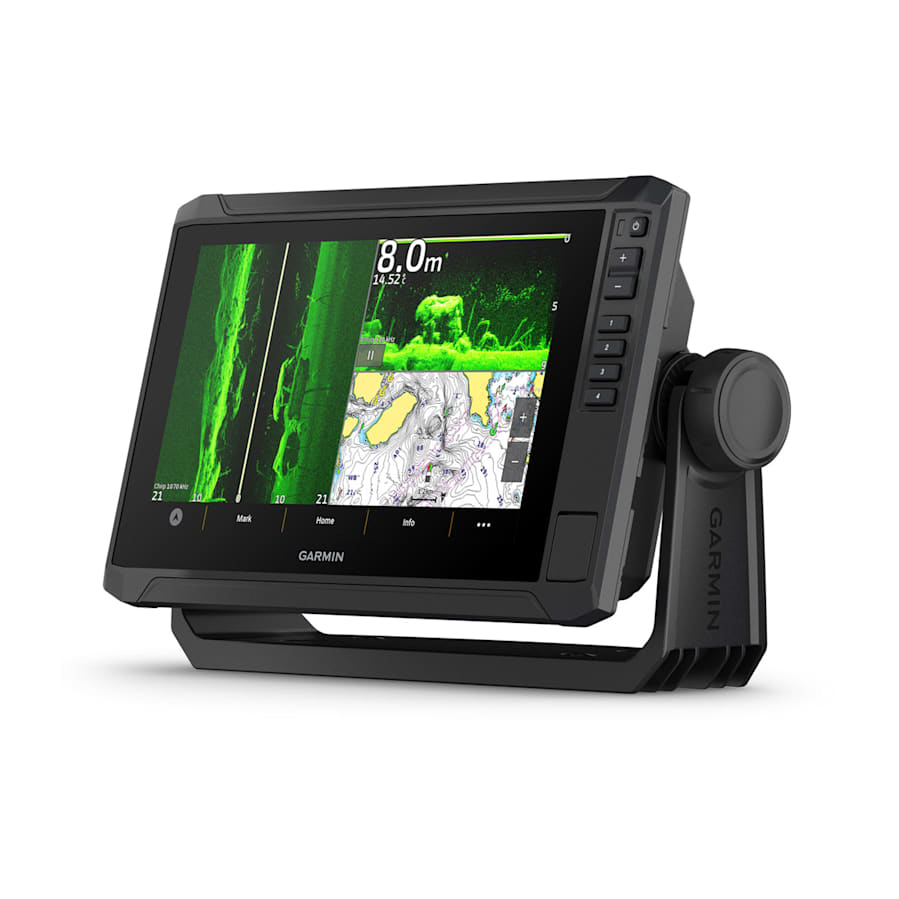

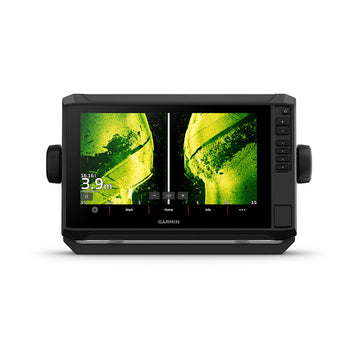

ECHOMAP™ UHD2 9" sv Chartplotters

Regular price $1,739.99 CAD
Sale price $1,739.99 CAD Regular price
Unit price
  • SKU:
    010-02687-00
Low stock

- Hurry! Limited stock left.

25 people are viewing this right now
Ask a question

Ask a Question

* Required fields

Size guide Share
Garmin ECHOMAP™ UHD2 9" sv Chartplotters 92sv without Transducer; includes Worldwide Basemap

ECHOMAP™ UHD2 9" sv Chartplotters

Product description
Features
Specs
What's In The Box?
Shipping & Return
Product reviews

[youtube id="eWxsF2Ljs8w"]

KNOW THE WATER BETTER THAN A LOCAL

When it comes to catching more fish, they say, “Talk to a local.” With the ECHOMAP UHD2 chartplotter, which offers our best-in-class sonar and mapping and premium touchscreen display with keyed-assist, you’ll know the water even better than they do.

  • The bright 6”, 7” or 9” touchscreen display with keyed-assist is user-friendly and easy to read.

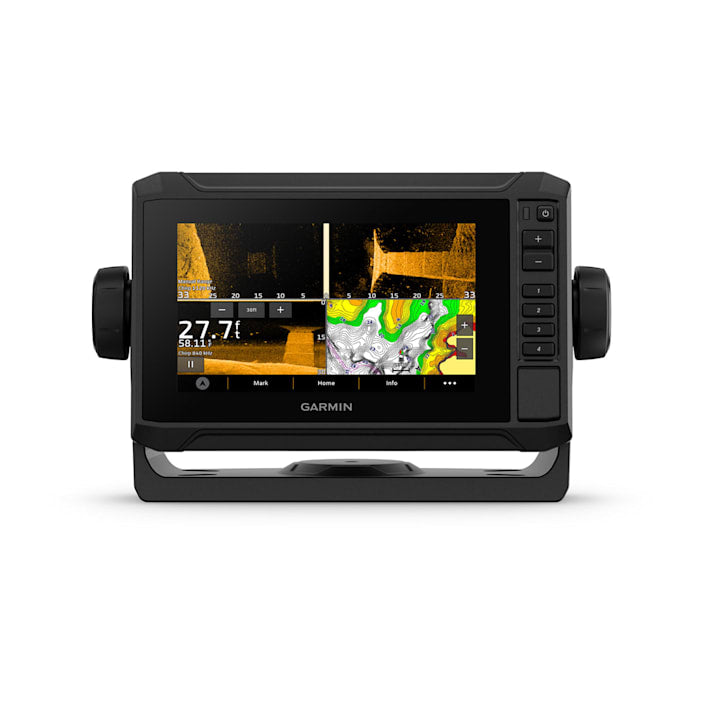

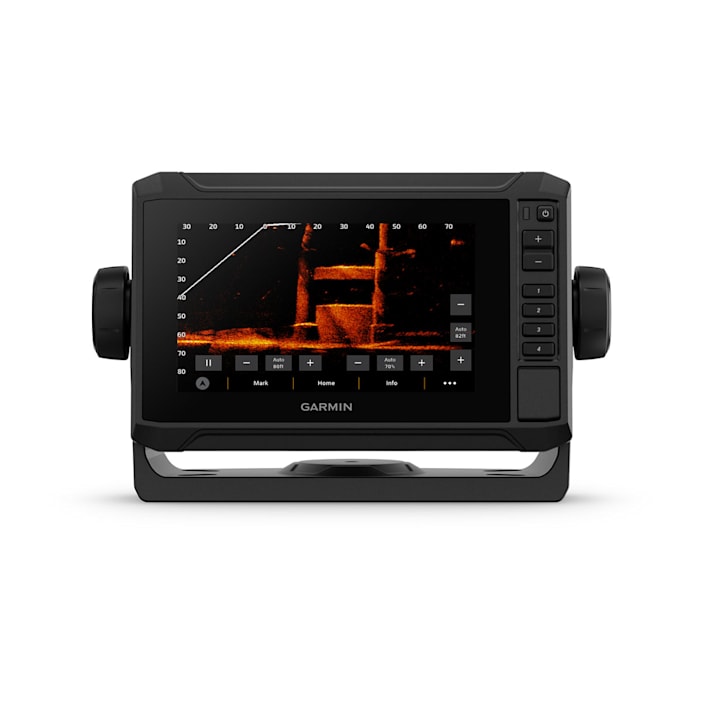

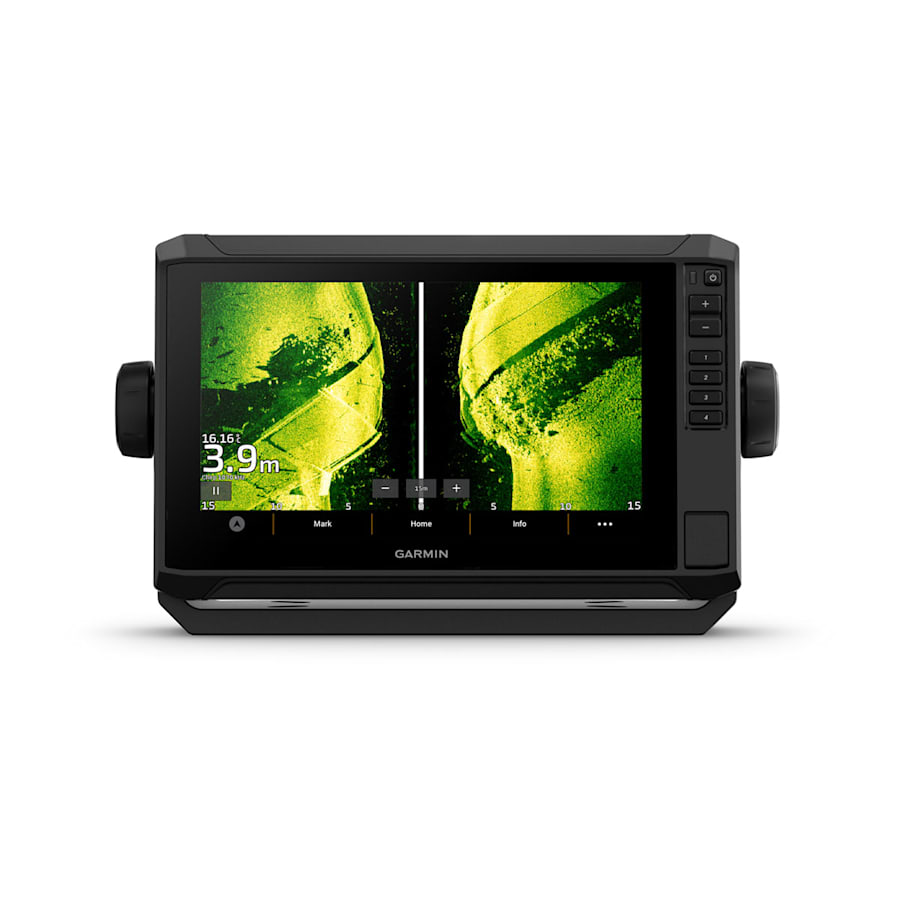

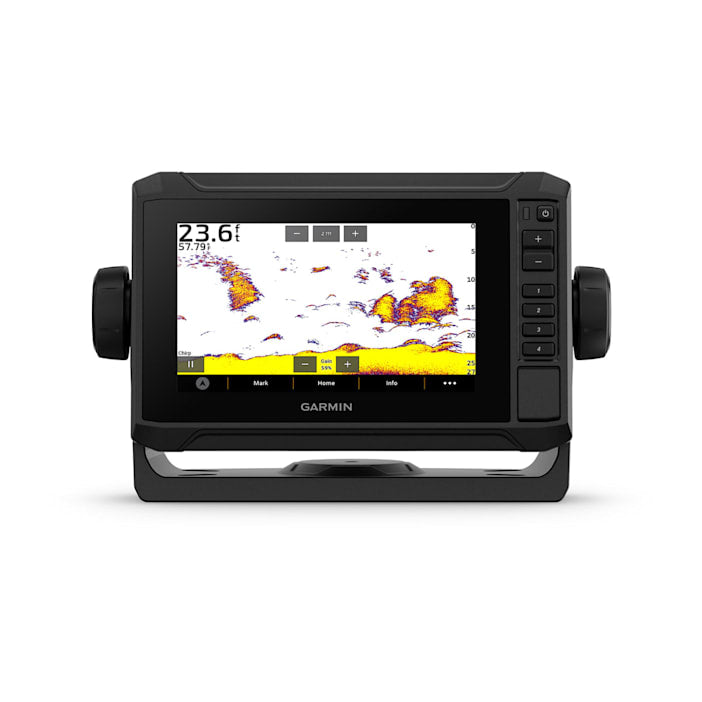

  • Good things come in threes. Three sonar types, that is: Garmin traditional, ClearVü and SideVü sonars.
  • Improved detail? Check. Distinguished targets? Yep. That’s the beauty of high-contrast vivid color palettes.
  • If you’re running another ECHOMAP UHD2 chartplotter, you can wirelessly share sonar, waypoints and routes.
  • Want our best in mapping? Who doesn’t? Select chartplotters come with Garmin Navionics+ mapping.
<div class="metafield-rich_text_field"><h3>General</h3><p><strong>Dimensions:</strong> 10.4&quot; x 6.5&quot; x 3.2&quot; (26.4 x 16.6 x 8.0 cm)</p><p><strong>Weight:</strong> 2.9 lbs (1.3 kg)</p><p><strong>Water Rating:</strong> IPX7</p><p><strong>Touchscreen:</strong> Yes</p><p><strong>Display:</strong> • Type: WSVGA, TN • Size: 7.8&quot; x 4.5&quot;, 9.0&quot; (19.8 x 11.5 cm, 22.9 cm) • Resolution: 1024 x 600 pixels</p><p><strong>Mounting Options:</strong> Bail or flush</p><p><strong>Input:</strong> Touchscreen with Keyed Assist</p><h3>Maps &amp; Memory</h3><p><strong>Accepts Data Cards:</strong> 1 microSD™ card; 32 GB maximum size</p><p><strong>Waypoints:</strong> 5,000</p><p><strong>Tracks:</strong> • Track Points: 50,000 • Saved Tracks: 50</p><p><strong>Navigation Routes:</strong> 100</p><h3>Sensors</h3><p><strong>GPS:</strong> Yes</p><p><strong>GLONASS:</strong> Yes</p><p><strong>Galileo:</strong> Yes</p><p><strong>BeiDou:</strong> Yes</p><p><strong>Built-In Receiver:</strong> Yes</p><p><strong>Receiver Update Rate:</strong> 10 Hz</p><p><strong>NMEA 2000 Compatible:</strong> Yes</p><p><strong>Supports WAAS:</strong> Yes</p><p><strong>Supports Multi-Band, Multi-Constellation GPS:</strong> Yes</p><h3>Built-in Maps</h3><p><strong>Built-in Auto Guidance+:</strong> Yes (downloadable via ActiveCaptain app)</p><p><strong>Garmin Navionics+ Inland &amp; Coastal:</strong> Yes (see Additional)</p><p><strong>Garmin Navionics+ (Coastal):</strong> Yes (see Additional)</p><p><strong>Garmin Navionics+ (Inland):</strong> Yes (see Additional)</p><p><strong>Tide Tables:</strong> Yes (see Additional)</p><h3>Optional Map Support</h3><p><strong>BlueChart g3:</strong> Yes</p><p><strong>BlueChart g3 Vision:</strong> Yes</p><p><strong>LakeVü g3:</strong> Yes</p><p><strong>LakeVü g3 Ultra:</strong> Yes</p><p><strong>Garmin Navionics+™:</strong> Yes</p><p><strong>Garmin Navionics Vision+™:</strong> Yes</p><p><strong>TOPO 100K:</strong> Yes</p><p><strong>Standard Mapping:</strong> Yes</p><p><strong>Garmin Quickdraw Contours:</strong> Yes</p><h3>Chartplotter Features</h3><p><strong>AIS:</strong> Yes</p><p><strong>DSC:</strong> Yes</p><p><strong>Supports Fusion-Link™ Compatible Radios:</strong> Yes</p><p><strong>ActiveCaptain® Compatible:</strong> Yes</p><p><strong>Sailing Features:</strong> Yes</p><h3>Electrical Features</h3><p><strong>Power Input:</strong> 9 to 18 Vdc</p><p><strong>Typical Current Draw (at 12 Vdc):</strong> 1.72 A</p><p><strong>Maximum Current Draw (at 12 Vdc):</strong> 3.5 A</p><p><strong>Maximum Power Usage (at 10 Vdc):</strong> 20.7W</p><h3>Sonar Features</h3><p><strong>Displays Sonar:</strong> Yes</p><p><strong>Power Output:</strong> 500 W</p><p><strong>Traditional Sonar (Dual Frequency/Beam):</strong> Built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)</p><p><strong>ClearVü:</strong> Built-in 260/455/800/1000/1200 kHz</p><p><strong>SideVü:</strong> Built-in 260/455/800/1000/1200 kHz</p><p><strong>Panoptix™ Sonar:</strong> Yes</p><p><strong>LiveScope:</strong> Yes</p><h3>Connections</h3><p><strong>NMEA 2000® Ports:</strong> Yes</p><p><strong>Garmin Marine Network Ports:</strong> 1</p><p><strong>12-Pin Transducer Ports:</strong> 1</p><p><strong>Bluetooth® Pairing:</strong> Yes</p><p><strong>ANT® (Connectivity):</strong> Yes</p><p><strong>Garmin Wi-Fi Network (Local Connection):</strong> Yes</p></div>
<div class="metafield-rich_text_field"><h3>With Transducer</h3><ul><li>ECHOMAP UHD2 (device varies depending on selection)</li><li>GT56-TM transducer</li><li>Power cable</li><li>Tilt mount with quick-release cradle</li><li>Protective cover</li><li>Hardware</li><li>Documentation</li></ul><h3>Without Transducer</h3><ul><li>ECHOMAP UHD2 (device will vary depending on selection)</li><li>12-pin sounder to 8-pin transducer cable</li><li>Power cable</li><li>Tilt mount with quick-release cradle</li><li>Protective cover</li><li>Hardware</li><li>Documentation</li></ul></div>

Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.

We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 14 days of delivery.
