ECHOMAP™ UHD2 5" cv Chartplotters

Regular price $659.99 CAD
Sale price $659.99 CAD Regular price
Unit price
  • SKU:
    010-02589-01
Low stock

- Hurry! Limited stock left.

25 people are viewing this right now
Ask a question

Ask a Question

* Required fields

Size guide Share

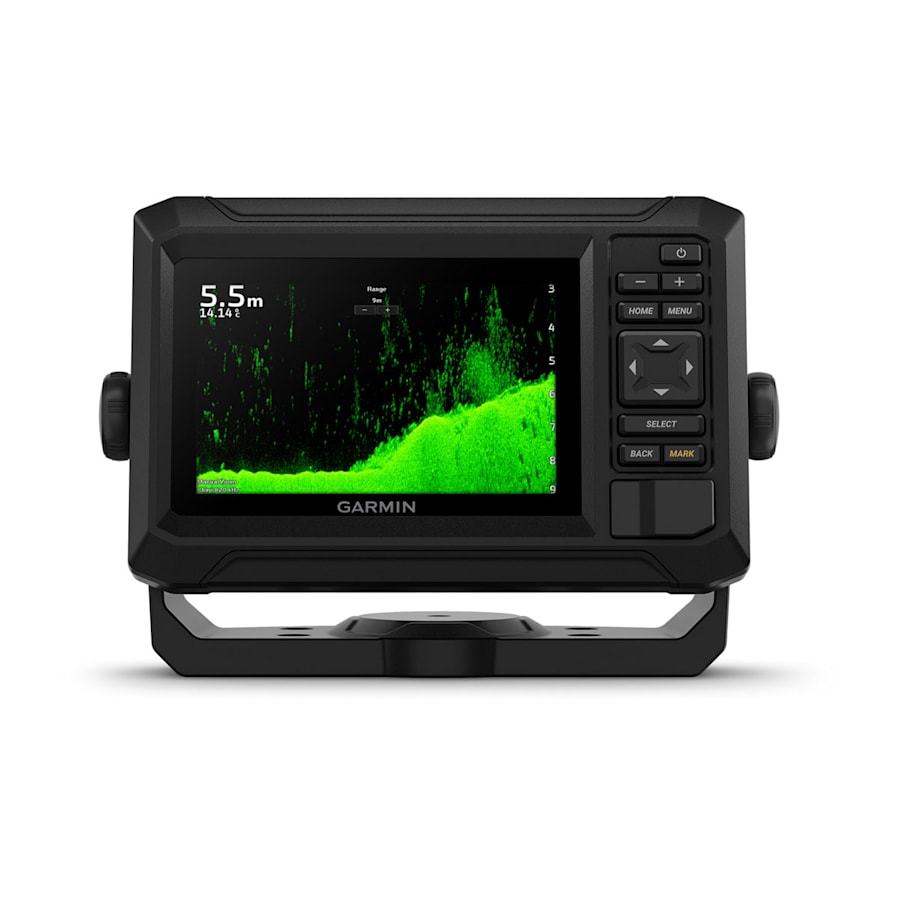

Garmin ECHOMAP™ UHD2 5" cv Chartplotter 52cv with GT20-TM Transducer

ECHOMAP™ UHD2 5" cv Chartplotters

Product description
Features
Specs
What's In The Box?
Shipping & Return
Product reviews

[youtube id="gQaJAGa3_IQ"]

WHY TALK TO A LOCAL WHEN YOU CAN FISH LIKE ONE?

They say locals know best. But anyone who says that hasn’t fished with the ECHOMAP UHD2 5” and 7” chartplotters with clear, crisp sonar and mapping.

  • The bright 5” or 7” keyed display is made for convenience.
  • Get double the views with Garmin CHIRP traditional and ClearVü scanning sonars.
  • What’s under the water looks even better with high-contrast vivid color palettes.
  • Wi-Fi® connectivity between compatible chartplotters makes it easy to share info.
  • Enjoy No. 1 in mapping with Garmin Navionics+™ inland and coastal content.
<div class="metafield-rich_text_field"><h3>General</h3><p><strong>Dimensions:</strong> 7.4&quot; x 4.8&quot; x 2.4&quot; (18.8 x 12.2 x 6.2 cm)</p><p><strong>Weight:</strong> 1.1 lbs (0.5 kg)</p><p><strong>Water Rating:</strong> IPX7</p><p><strong>Display:</strong> • Type: WVGA, IPS • Size: 4.3&quot; x 2.6&quot; (10.9 x 6.6 cm) • Resolution: 800 x 480 pixels</p><p><strong>Mounting Options:</strong> Bail or flush</p><p><strong>Input:</strong> —</p><h3>Maps &amp; Memory</h3><p><strong>Accepts Data Cards:</strong> 1 microSD™ card; 32 GB maximum size</p><p><strong>Waypoints:</strong> 5,000</p><p><strong>Tracks:</strong> • Track Points: 50,000 • Saved Tracks: 50</p><p><strong>Navigation Routes:</strong> 100</p><h3>Sensors</h3><p><strong>GPS:</strong> Yes</p><p><strong>Galileo:</strong> Yes</p><p><strong>Built-In Receiver:</strong> Yes</p><p><strong>Receiver Update Rate:</strong> 5 Hz</p><p><strong>Supports WAAS:</strong> Yes</p><h3>Built-in Maps</h3><p><strong>Built-in Auto Guidance+:</strong> Yes (downloadable via ActiveCaptain app)</p><p><strong>Garmin Navionics+ Inland &amp; Coastal:</strong> Yes (see Additional)</p><p><strong>Garmin Navionics+ (Coastal):</strong> Yes (see Additional)</p><p><strong>Garmin Navionics+ (Inland):</strong> Yes (see Additional)</p><p><strong>Tide Tables:</strong> Yes (see Additional)</p><h3>Optional Map Support</h3><p><strong>BlueChart g3:</strong> Yes</p><p><strong>BlueChart g3 Vision:</strong> Yes</p><p><strong>LakeVü g3:</strong> Yes</p><p><strong>LakeVü g3 Ultra:</strong> Yes</p><p><strong>Garmin Navionics+™:</strong> Yes</p><p><strong>Garmin Navionics Vision+™:</strong> Yes</p><p><strong>TOPO 100K:</strong> Yes</p><p><strong>Standard Mapping:</strong> Yes</p><p><strong>Garmin Quickdraw Contours:</strong> Yes</p><h3>Chartplotter Features</h3><p><strong>ActiveCaptain® Compatible:</strong> Yes</p><h3>Electrical Features</h3><p><strong>Power Input:</strong> 9 to 18 Vdc</p><p><strong>Typical Current Draw (at 12 Vdc):</strong> 1.0 A</p><p><strong>Maximum Current Draw (at 12 Vdc):</strong> 1.5 A</p><p><strong>Maximum Power Usage (at 10 Vdc):</strong> 18W</p><h3>Sonar Features</h3><p><strong>Displays Sonar:</strong> Yes</p><p><strong>Power Output:</strong> 500 W</p><p><strong>Traditional Sonar (Dual Frequency/Beam):</strong> Built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)</p><p><strong>ClearVü:</strong> Built-in 260/455/800/1000/1200 kHz</p><h3>Connections</h3><p><strong>4-Pin Transducer Ports:</strong> 1</p><p><strong>Garmin Wi-Fi Network (Local Connection):</strong> Yes</p><h3>Additional</h3><p><strong>Garmin Navionics+ (Inland and Coastal):</strong> 55cv Canada, 55cv Australia/New Zealand</p><p><strong>Garmin Navionics+ (Coastal):</strong> 54cv U.S., 55cv U.K./Ireland</p><p><strong>Garmin Navionics+ (Inland):</strong> 53cv U.S. lakes</p><p><strong>Tide Tables:</strong> 53cv, 54cv, 55cv, 73cv, 74cv, 75cv</p></div>
<div class="metafield-rich_text_field"><h3>With Transducer</h3><ul><li>ECHOMAP UHD2 (device varies depending on selection)</li><li>GT20-TM transducer</li><li>Power/data cable</li><li>Tilt mount</li><li>Flush mount</li><li>Hardware</li><li>Documentation</li></ul><h3>Without Transducer</h3><ul><li>ECHOMAP UHD2 (device will vary depending on selection)</li><li>Power/data cable</li><li>Tilt mount</li><li>Flush mount</li><li>Hardware</li><li>Documentation</li></ul></div>

Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.

We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 14 days of delivery.
